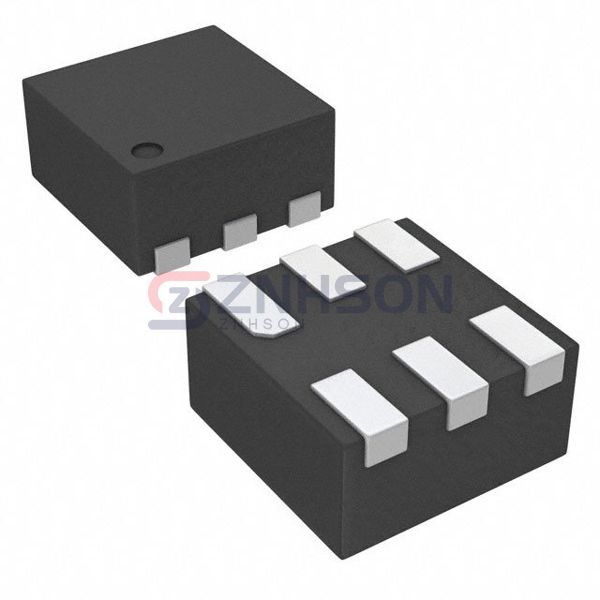

TPS71745DSER

Texas Instruments

Manufacturer

Texas Instruments

Description:

IC REG LINEAR 4.5V 150MA 6WSON

Datasheet:

TPS71745DSER Datasheet

$1.34

Available to order

Reference Price (USD)

3,000+

$0.44380

6,000+

$0.42161

15,000+

$0.40576

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Discover the TPS71745DSER linear voltage regulator IC by Texas Instruments, a standout product in our PMIC - Voltage Regulators - Linear category. This IC provides precise voltage regulation with ultra-low noise output, making it perfect for analog and RF circuits. The device features excellent PSRR (Power Supply Rejection Ratio) performance and comes in various package options to suit different design requirements. Linear regulators such as this TPS71745DSER model are extensively used in consumer electronics (smartphones, tablets), IoT devices, and aerospace applications where consistent voltage without switching noise is essential. Its robust design ensures reliable operation in harsh environments with wide temperature ranges.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 6.5V
Voltage - Output (Min/Fixed): 4.5V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.3V @ 150mA
Current - Output: 150mA
Current - Quiescent (Iq): 80 µA
Current - Supply (Max): 100 µA
PSRR: 70dB ~ 45dB (100Hz ~ 1MHz)
Control Features: Enable
Protection Features: Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount
Package / Case: 6-WFDFN
Supplier Device Package: 6-WSON (1.5x1.5)
