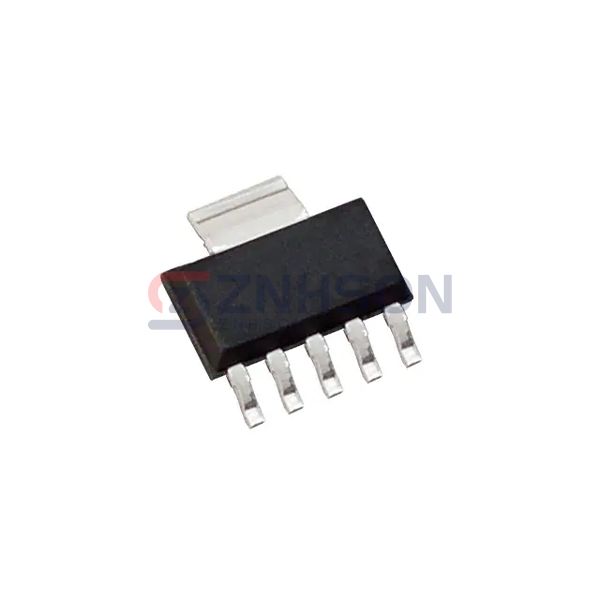

TPS72501DCQG4
Texas Instruments
Texas Instruments
IC REG LIN POS ADJ 1A SOT223-6
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TPS72501DCQG4 from Texas Instruments is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.
Specifications
- Product Status: Active
- Output Configuration: Positive
- Output Type: Adjustable
- Number of Regulators: 1
- Voltage - Input (Max): 6V
- Voltage - Output (Min/Fixed): 1.22V
- Voltage - Output (Max): 5.5V
- Voltage Dropout (Max): 0.28V @ 1A
- Current - Output: 1A
- Current - Quiescent (Iq): 225 µA
- Current - Supply (Max): 325 µA
- PSRR: 60dB (1kHz)
- Control Features: Enable, Reset
- Protection Features: Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: SOT-223-6
- Supplier Device Package: SOT-223-6
