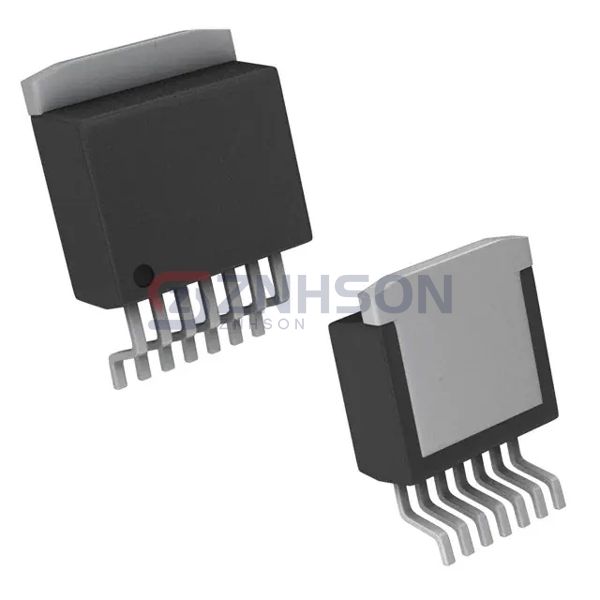

TPS74201KTWTG3

Texas Instruments

Manufacturer

Texas Instruments

Description:

IC REG LIN POS ADJ 1.5A DDPAK

Datasheet:

TPS74201KTWTG3 Datasheet

$6.80

Available to order

Reference Price (USD)

50+

$5.86100

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Discover the TPS74201KTWTG3 linear voltage regulator IC by Texas Instruments, a standout product in our PMIC - Voltage Regulators - Linear category. This IC provides precise voltage regulation with ultra-low noise output, making it perfect for analog and RF circuits. The device features excellent PSRR (Power Supply Rejection Ratio) performance and comes in various package options to suit different design requirements. Linear regulators such as this TPS74201KTWTG3 model are extensively used in consumer electronics (smartphones, tablets), IoT devices, and aerospace applications where consistent voltage without switching noise is essential. Its robust design ensures reliable operation in harsh environments with wide temperature ranges.

Specifications

Product Status: Obsolete
Output Configuration: Positive
Output Type: Adjustable
Number of Regulators: 1
Voltage - Input (Max): 5.5V
Voltage - Output (Min/Fixed): 0.8V
Voltage - Output (Max): 3.6V
Voltage Dropout (Max): 0.12V @ 1.5A
Current - Output: 1.5A
Current - Quiescent (Iq): 115 µA
Current - Supply (Max): 1.5 mA
PSRR: 73dB ~ 42dB (1kHz ~ 300kHz)
Control Features: Enable, Power Good, Soft Start
Protection Features: Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount
Package / Case: TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
Supplier Device Package: DDPAK/TO-263-7
