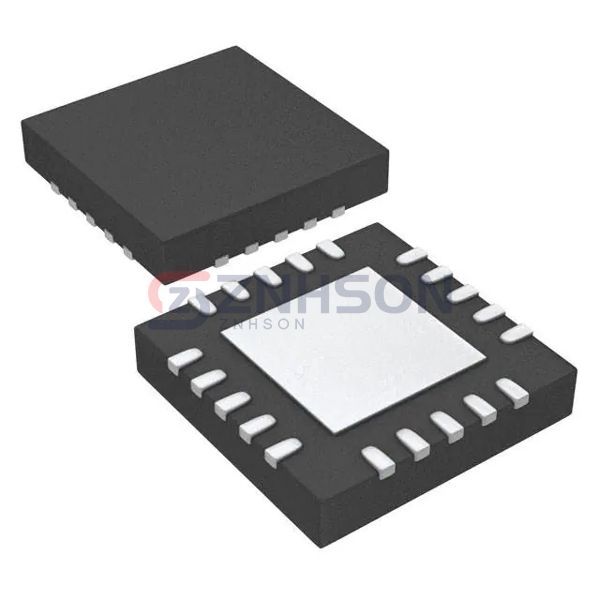

TPS74201RGWR

Texas Instruments

Manufacturer

Texas Instruments

Description:

IC REG LIN POS ADJ 1.5A 20VQFN

Datasheet:

TPS74201RGWR Datasheet

$6.18

Available to order

Reference Price (USD)

$6.18000

500+

$6.1182

1000+

$6.0564

1500+

$5.9946

2000+

$5.9328

2500+

$5.871

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The TPS74201RGWR from Texas Instruments is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Adjustable
Number of Regulators: 1
Voltage - Input (Max): 5.5V
Voltage - Output (Min/Fixed): 0.8V
Voltage - Output (Max): 3.6V
Voltage Dropout (Max): 0.12V @ 1.5A
Current - Output: 1.5A
Current - Quiescent (Iq): 115 µA
Current - Supply (Max): 1.5 mA
PSRR: 73dB ~ 42dB (1kHz ~ 300kHz)
Control Features: Enable, Power Good, Soft Start
Protection Features: Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount
Package / Case: 20-VQFN Exposed Pad
Supplier Device Package: 20-VQFN (5x5)
