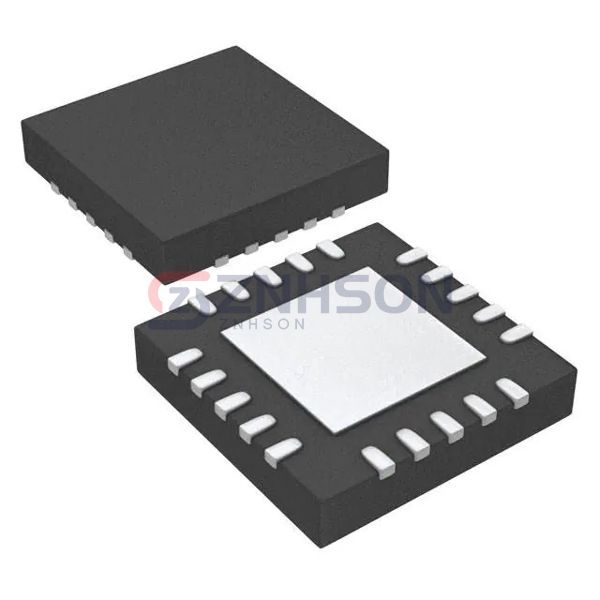

TPS74401RGWRG4

Texas Instruments

Manufacturer

Texas Instruments

Description:

IC REG LINEAR POS ADJ 3A 20VQFN

Datasheet:

TPS74401RGWRG4 Datasheet

$0.00

Available to order

Reference Price (USD)

$0.00000

500+

1000+

1500+

2000+

2500+

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The TPS74401RGWRG4 by Texas Instruments is a high-efficiency PMIC - Voltage Regulators - Linear IC designed to meet the needs of today's advanced electronic systems. This IC offers superior voltage regulation with features like fast transient response, low noise, and high accuracy. Its robust construction ensures long-term reliability, making it a perfect fit for both commercial and industrial applications. In the PMIC - Voltage Regulators - Linear category, the TPS74401RGWRG4 stands out for its ability to handle varying load conditions without compromising performance. It provides excellent line regulation and low quiescent current, which are essential for energy-efficient designs. Additionally, its built-in protection mechanisms safeguard against over-voltage and short-circuit conditions. The TPS74401RGWRG4 is employed in diverse fields, including medical imaging, consumer electronics, and military equipment. For instance, it is used in MRI machines, high-end audio systems, and defense communication devices. Its versatility and dependable performance make it a cornerstone in modern electronic engineering.

Specifications

Product Status: Discontinued at Digi-Key
Output Configuration: Positive
Output Type: Adjustable
Number of Regulators: 1
Voltage - Input (Max): 5.5V
Voltage - Output (Min/Fixed): 0.8V
Voltage - Output (Max): 3.6V
Voltage Dropout (Max): 0.24V @ 3A
Current - Output: 3A
Current - Quiescent (Iq): -
Current - Supply (Max): -
PSRR: 73dB ~ 50dB (1kHz ~ 800kHz)
Control Features: Enable, Power Good, Soft Start
Protection Features: Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount
Package / Case: 20-VQFN Exposed Pad
Supplier Device Package: 20-VQFN (5x5)
