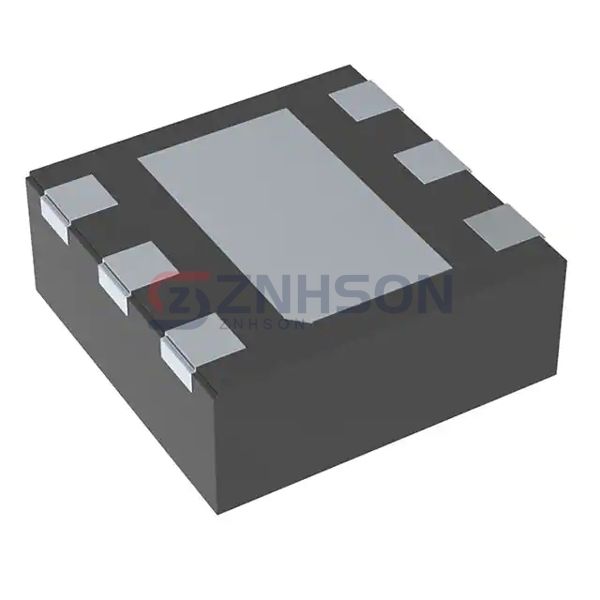

TPS74522PQWDRVRQ1

Texas Instruments

Manufacturer

Texas Instruments

Description:

IC REG LINEAR 2.2V 500MA 6WSON

Datasheet:

TPS74522PQWDRVRQ1 Datasheet

$1.35

Available to order

Reference Price (USD)

$1.35000

500+

$1.3365

1000+

$1.323

1500+

$1.3095

2000+

$1.296

2500+

$1.2825

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The TPS74522PQWDRVRQ1 by Texas Instruments is a standout in the PMIC - Voltage Regulators - Linear category, offering unparalleled voltage regulation for a variety of electronic systems. This IC is designed to provide consistent and reliable power, with features such as low dropout voltage, high output accuracy, and excellent load transient response. Whether you're designing for high-performance or energy-efficient applications, the TPS74522PQWDRVRQ1 delivers the precision and reliability you need. PMIC - Voltage Regulators - Linear ICs are critical for maintaining voltage stability in electronic circuits, and the TPS74522PQWDRVRQ1 is no exception. It boasts a wide input voltage range, making it adaptable to diverse power sources. Additionally, its low noise output ensures minimal interference with sensitive components, which is crucial for audio and RF applications. Applications of the TPS74522PQWDRVRQ1 span across industries such as aerospace, telecommunications, and renewable energy. For instance, it is used in satellite communication systems, base station power supplies, and solar power inverters. Its robust design and high efficiency make it a trusted component for engineers working on cutting-edge technologies.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 6V
Voltage - Output (Min/Fixed): 2.2V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.14V @ 500mA
Current - Output: 500mA
Current - Quiescent (Iq): 36 µA
Current - Supply (Max): -
PSRR: 57dB ~ 35dB (1kHz ~ 1MHz)
Control Features: Enable, Power Good
Protection Features: Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 125°C (TJ)
Mounting Type: Surface Mount
Package / Case: 6-WDFN Exposed Pad
Supplier Device Package: 6-WSON (2x2)
