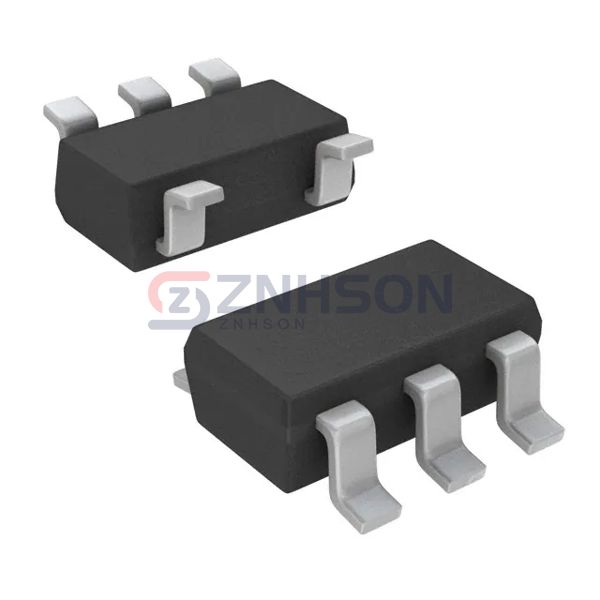

TPS799315DDCRG4

Texas Instruments

Manufacturer

Texas Instruments

Description:

IC REG LIN 3.15V 200MA SOT23-5

Datasheet:

TPS799315DDCRG4 Datasheet

$0.00

Available to order

Reference Price (USD)

$0.00000

500+

1000+

1500+

2000+

2500+

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Discover the TPS799315DDCRG4, a premium PMIC - Voltage Regulators - Linear IC from Texas Instruments, engineered to provide exceptional voltage regulation with minimal power loss. This IC is part of the esteemed PMIC - Voltage Regulators - Linear category, known for its ability to maintain stable voltage levels under varying load conditions. The TPS799315DDCRG4 excels with its low quiescent current, high efficiency, and superior thermal management, ensuring optimal performance in demanding environments. Linear voltage regulators like the TPS799315DDCRG4 are pivotal in applications requiring precise voltage control without the complexity of switching regulators. The TPS799315DDCRG4 offers outstanding line and load regulation, making it a preferred choice for sensitive electronic circuits. Its advanced protection features, including over-current and over-temperature safeguards, further enhance its reliability. The TPS799315DDCRG4 finds applications across multiple sectors, including medical devices, industrial automation, and consumer electronics. For example, it is used in wearable health monitors, factory automation systems, and smart home devices. Its ability to deliver clean and stable power makes it indispensable for modern electronic designs, ensuring both performance and safety.

Specifications

Product Status: Discontinued at Digi-Key
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 6.5V
Voltage - Output (Min/Fixed): 3.15V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.18V @ 200mA
Current - Output: 200mA
Current - Quiescent (Iq): 60 µA
Current - Supply (Max): -
PSRR: 70dB ~ 38dB (100Hz ~ 100kHz)
Control Features: Enable
Protection Features: Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount
Package / Case: SOT-23-5 Thin, TSOT-23-5
Supplier Device Package: SOT-23-THIN
