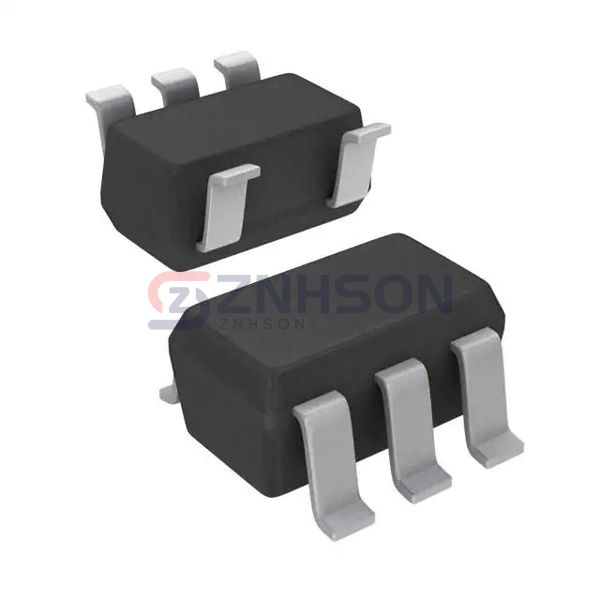

TPS7A0236PDBVR

Texas Instruments

Manufacturer

Texas Instruments

Description:

IC REG LINEAR 3.6V 200MA SOT23-5

Datasheet:

TPS7A0236PDBVR Datasheet

$1.58

Available to order

Reference Price (USD)

$1.58000

500+

$1.5642

1000+

$1.5484

1500+

$1.5326

2000+

$1.5168

2500+

$1.501

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The TPS7A0236PDBVR from Texas Instruments is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 6V
Voltage - Output (Min/Fixed): 3.6V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.31V @ 200mA
Current - Output: 200mA
Current - Quiescent (Iq): 60 nA
Current - Supply (Max): -
PSRR: 55dB (1kHz)
Control Features: Enable
Protection Features: Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 125°C (TJ)
Mounting Type: Surface Mount
Package / Case: SC-74A, SOT-753
Supplier Device Package: SOT-23-5
