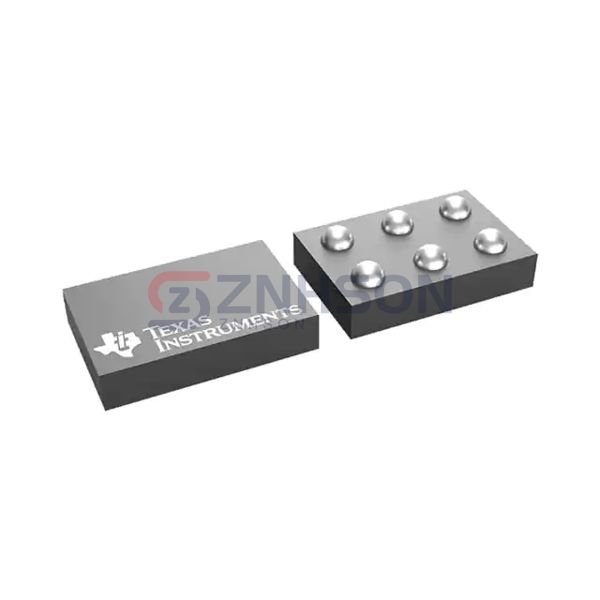

TPS7A1309PYCKR
Texas Instruments

Texas Instruments
300-MA, LOW INPUT AND OUTPUT VOL
$0.80
Available to order
Reference Price (USD)
1+
$0.80000
500+
$0.792
1000+
$0.784
1500+
$0.776
2000+
$0.768
2500+
$0.76
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the TPS7A1309PYCKR linear voltage regulator IC by Texas Instruments, a standout product in our PMIC - Voltage Regulators - Linear category. This IC provides precise voltage regulation with ultra-low noise output, making it perfect for analog and RF circuits. The device features excellent PSRR (Power Supply Rejection Ratio) performance and comes in various package options to suit different design requirements. Linear regulators such as this TPS7A1309PYCKR model are extensively used in consumer electronics (smartphones, tablets), IoT devices, and aerospace applications where consistent voltage without switching noise is essential. Its robust design ensures reliable operation in harsh environments with wide temperature ranges.
Specifications
- Product Status: Active
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 2.2V
- Voltage - Output (Min/Fixed): 0.9V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.065V @ 300mA
- Current - Output: 300mA
- Current - Quiescent (Iq): 17 µA
- Current - Supply (Max): 500 µA
- PSRR: 65dB ~ 26dB (1kHz ~ 1MHz)
- Control Features: Current Limit, Enable
- Protection Features: Over Current, Over Temperature, Under Voltage Lockout (UVLO)
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 6-XFBGA, DSBGA
- Supplier Device Package: 6-DSBGA (0.67x0.96)
