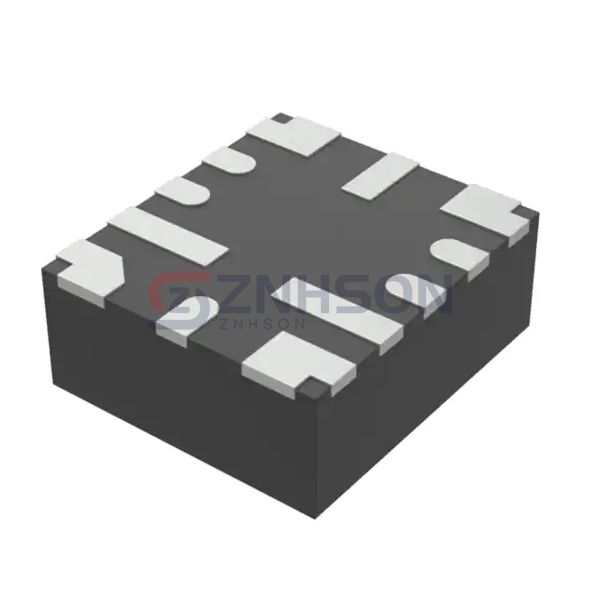

TPS7A5401RPST

Texas Instruments

Manufacturer

Texas Instruments

Description:

IC REG LINEAR POS ADJ 4A 12VQFN

Datasheet:

TPS7A5401RPST Datasheet

$5.29

Available to order

Reference Price (USD)

$5.29000

500+

$5.2371

1000+

$5.1842

1500+

$5.1313

2000+

$5.0784

2500+

$5.0255

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Discover the TPS7A5401RPST linear voltage regulator IC by Texas Instruments, a standout product in our PMIC - Voltage Regulators - Linear category. This IC provides precise voltage regulation with ultra-low noise output, making it perfect for analog and RF circuits. The device features excellent PSRR (Power Supply Rejection Ratio) performance and comes in various package options to suit different design requirements. Linear regulators such as this TPS7A5401RPST model are extensively used in consumer electronics (smartphones, tablets), IoT devices, and aerospace applications where consistent voltage without switching noise is essential. Its robust design ensures reliable operation in harsh environments with wide temperature ranges.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Adjustable
Number of Regulators: 1
Voltage - Input (Max): 6.5V
Voltage - Output (Min/Fixed): 0.8V
Voltage - Output (Max): 5.15V
Voltage Dropout (Max): 0.565V @ 4A
Current - Output: 4A
Current - Quiescent (Iq): 4 mA
Current - Supply (Max): 6 mA
PSRR: 42dB ~ 39dB (10kHz ~ 500kHz)
Control Features: Enable, Power Good, Soft Start
Protection Features: Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 125°C (TJ)
Mounting Type: Surface Mount
Package / Case: 12-VFQFN
Supplier Device Package: 12-VQFN-HR (2.2x2.5)
