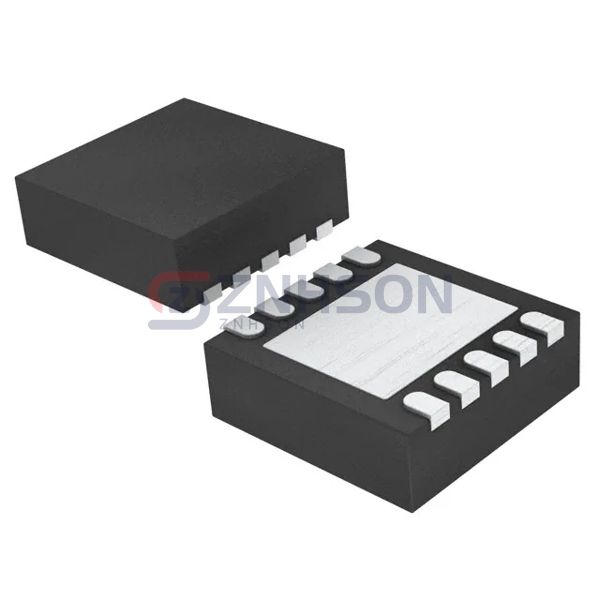

TPS7A9001DSKR
Texas Instruments
Texas Instruments
IC REG LIN POS ADJ 500MA 10SON
$1.69
Available to order
Reference Price (USD)
1+
$1.69000
500+
$1.6731
1000+
$1.6562
1500+
$1.6393
2000+
$1.6224
2500+
$1.6055
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Texas Instruments's TPS7A9001DSKR represents the cutting edge in linear voltage regulator technology within our Integrated Circuits (ICs) inventory. This PMIC component delivers fixed or adjustable output voltages with outstanding line and load regulation performance. The device incorporates advanced protection features including over-temperature and short-circuit protection, making it exceptionally reliable for critical applications. Linear voltage regulators like the TPS7A9001DSKR are fundamental in automotive electronics (for infotainment systems and ECUs), industrial control systems, and telecommunications infrastructure where voltage stability is paramount. Engineers particularly value these ICs for their simplicity of design and minimal external component requirements.
Specifications
- Product Status: Active
- Output Configuration: Positive
- Output Type: Adjustable
- Number of Regulators: 1
- Voltage - Input (Max): 6.5V
- Voltage - Output (Min/Fixed): 0.8V
- Voltage - Output (Max): 5.7V
- Voltage Dropout (Max): 0.2V @ 500mA
- Current - Output: 500mA
- Current - Quiescent (Iq): 4 mA
- Current - Supply (Max): -
- PSRR: 50dB (100kHz)
- Control Features: Enable, Power Good, Soft Start
- Protection Features: Over Temperature, Under Voltage Lockout (UVLO)
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 10-WFDFN Exposed Pad
- Supplier Device Package: 10-SON (2.5x2.5)
Related Products
ABLIC Inc.
S-13A1H25-E6T1U3
Nisshinbo Micro Devices Inc.
RP131S261B-E2-FE
ABLIC Inc.
S-1133B20-U5T1G
onsemi
NCV8163ASN330T1G
ABLIC Inc.
S-11L10D28-I6T2U
Diodes Incorporated
AP7343D-14FS4-7B
ABLIC Inc.
S-1135B15-M5T1U
Texas Instruments

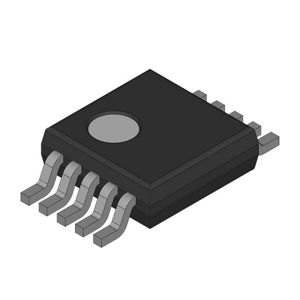

TPS61011DGSR
Fairchild Semiconductor

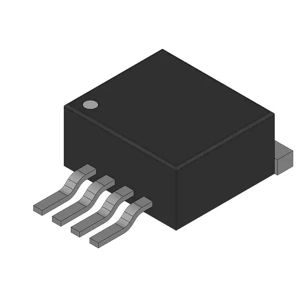

FAN1581M12X
