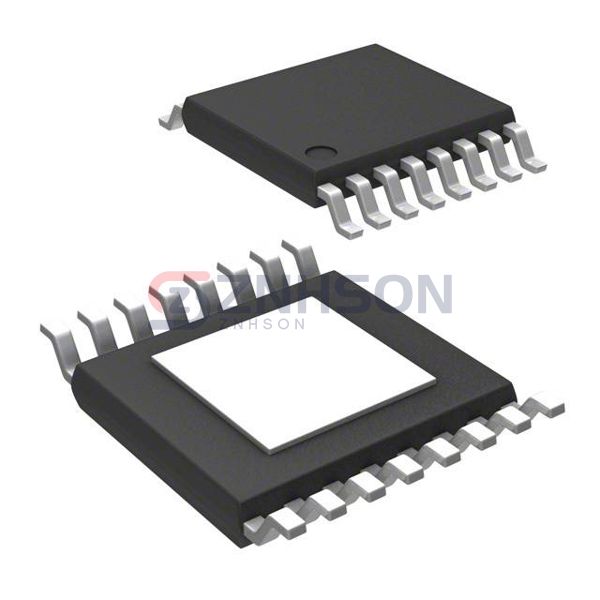

TPS7B7702QPWPRQ1

Texas Instruments

Manufacturer

Texas Instruments

Description:

IC REG LIN POS ADJ 16HTSSOP

Datasheet:

TPS7B7702QPWPRQ1 Datasheet

$3.86

Available to order

Reference Price (USD)

2,000+

$2.04288

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The TPS7B7702QPWPRQ1 by Texas Instruments is a standout in the PMIC - Voltage Regulators - Linear category, offering unparalleled voltage regulation for a variety of electronic systems. This IC is designed to provide consistent and reliable power, with features such as low dropout voltage, high output accuracy, and excellent load transient response. Whether you're designing for high-performance or energy-efficient applications, the TPS7B7702QPWPRQ1 delivers the precision and reliability you need. PMIC - Voltage Regulators - Linear ICs are critical for maintaining voltage stability in electronic circuits, and the TPS7B7702QPWPRQ1 is no exception. It boasts a wide input voltage range, making it adaptable to diverse power sources. Additionally, its low noise output ensures minimal interference with sensitive components, which is crucial for audio and RF applications. Applications of the TPS7B7702QPWPRQ1 span across industries such as aerospace, telecommunications, and renewable energy. For instance, it is used in satellite communication systems, base station power supplies, and solar power inverters. Its robust design and high efficiency make it a trusted component for engineers working on cutting-edge technologies.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Adjustable
Number of Regulators: 2
Voltage - Input (Max): 40V
Voltage - Output (Min/Fixed): 1.5V
Voltage - Output (Max): 20V
Voltage Dropout (Max): 0.5V @ 100mA
Current - Output: 300mA
Current - Quiescent (Iq): 1 mA
Current - Supply (Max): -
PSRR: 73dB (100Hz)
Control Features: Current Limit, Enable
Protection Features: Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 150°C
Mounting Type: Surface Mount
Package / Case: 16-PowerTSSOP (0.173", 4.40mm Width)
Supplier Device Package: 16-HTSSOP
