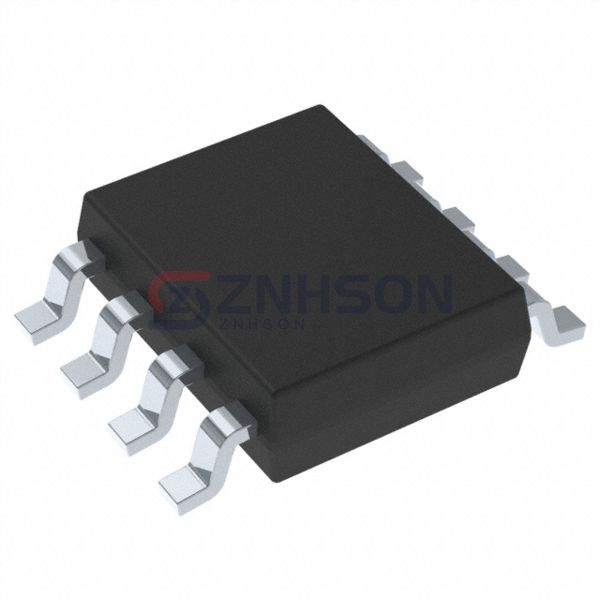

TPS7B8601QDDARQ1

Texas Instruments

Manufacturer

Texas Instruments

Description:

IC REG LIN POS ADJ 8SO PWRPAD

Datasheet:

TPS7B8601QDDARQ1 Datasheet

$2.30

Available to order

Reference Price (USD)

$2.30000

500+

$2.277

1000+

$2.254

1500+

$2.231

2000+

$2.208

2500+

$2.185

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The TPS7B8601QDDARQ1 from Texas Instruments is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Adjustable
Number of Regulators: 1
Voltage - Input (Max): 40V
Voltage - Output (Min/Fixed): 1.2V
Voltage - Output (Max): 18V
Voltage Dropout (Max): 0.570V @ 500mA
Current - Output: 500mA
Current - Quiescent (Iq): 26 µA
Current - Supply (Max): -
PSRR: 70dB (1kHz)
Control Features: Enable, Power Good
Protection Features: Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 150°C (TJ)
Mounting Type: Surface Mount
Package / Case: 8-PowerSOIC (0.154", 3.90mm Width)
Supplier Device Package: 8-SO PowerPad
