TS-102-T-A
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 2POS 2.54MM
$0.42
Available to order
Reference Price (USD)
1+
$0.34000
10+
$0.31800
25+
$0.27240
50+
$0.23140
100+
$0.22230
250+
$0.19964
500+
$0.19058
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

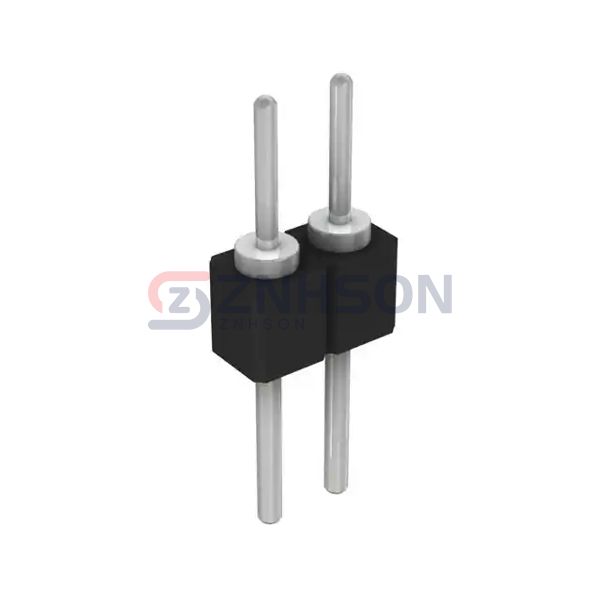

The TS-102-T-A by Samtec Inc. is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Samtec Inc. delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.166" (4.22mm)
- Contact Length - Post: 0.156" (3.96mm)
- Overall Contact Length: 0.477" (12.12mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 200.0µin (5.08µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
