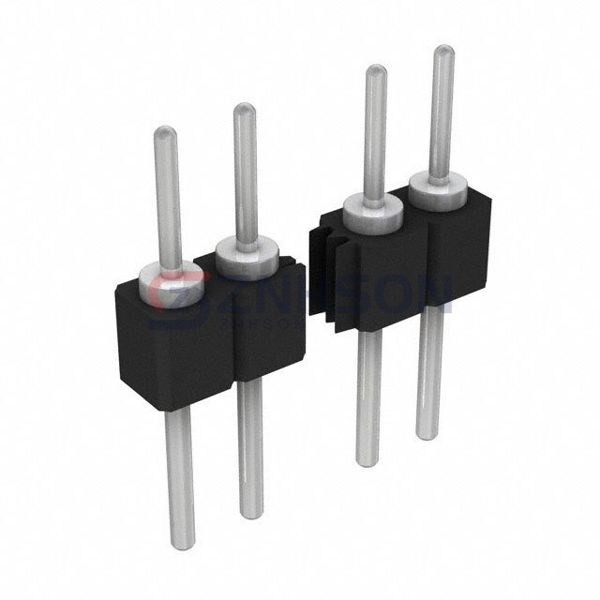

TS-113-T-A
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 13POS 2.54MM
$1.99
Available to order
Reference Price (USD)
1+
$1.59000
10+
$1.44500
25+
$1.35680
50+
$1.29780
100+
$1.23870
250+
$1.12076
500+
$1.03228
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TS-113-T-A by Samtec Inc. is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the TS-113-T-A supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Samtec Inc. ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 13
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.166" (4.22mm)
- Contact Length - Post: 0.156" (3.96mm)
- Overall Contact Length: 0.477" (12.12mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 200.0µin (5.08µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
