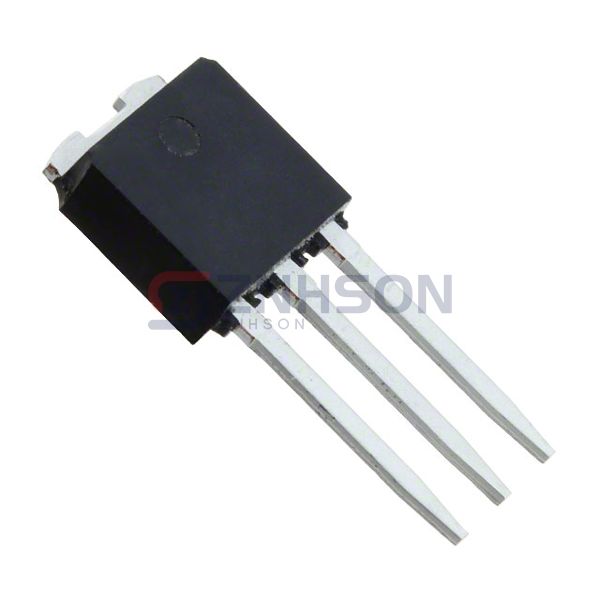

TS1220-600H
STMicroelectronics
STMicroelectronics
SCR 600V 12A IPAK
$1.70
Available to order
Reference Price (USD)
1+
$1.63000
75+
$1.38320
150+
$1.13620
525+
$0.93861
1,050+
$0.74100
2,550+
$0.69160
5,025+
$0.65702
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TS1220-600H Thyristor - SCR by STMicroelectronics is a standout in the Discrete Semiconductor Products lineup, offering superior voltage and current ratings. Engineered for efficiency, this SCR features low gate triggering current and high noise immunity. Its primary applications include AC power control, phase-angle controllers, and UPS systems. Examples range from household dimmers to heavy-duty industrial machinery. With STMicroelectronics's commitment to quality, the TS1220-600H guarantees optimal performance in demanding environments.
Specifications
- Product Status: Active
- Voltage - Off State: 600 V
- Voltage - Gate Trigger (Vgt) (Max): 800 mV
- Current - Gate Trigger (Igt) (Max): 200 µA
- Voltage - On State (Vtm) (Max): 1.6 V
- Current - On State (It (AV)) (Max): 8 A
- Current - On State (It (RMS)) (Max): 12 A
- Current - Hold (Ih) (Max): 5 mA
- Current - Off State (Max): 5 µA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 110A, 115A
- SCR Type: Sensitive Gate
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Through Hole
- Package / Case: TO-251-3 Short Leads, IPak, TO-251AA
- Supplier Device Package: TO-251 (IPAK)
