TS3A24157RSERG4
Texas Instruments
Texas Instruments

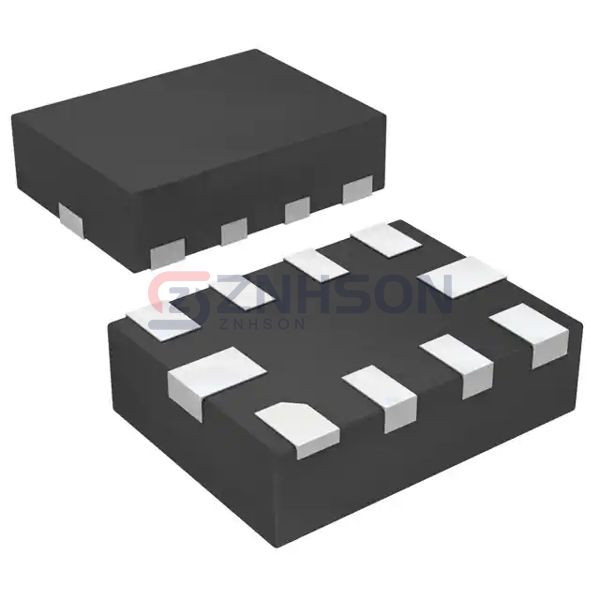

IC SWITCH DUAL SPDT 10UQFN
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the TS3A24157RSERG4 - Texas Instruments's most advanced configurable analog switch IC, featuring programmable channel sequencing and built-in self-test capabilities. As a star product in our Interface components range, it offers 64:1 multiplexing ratio in compact QFN packages. The TS3A24157RSERG4 enables next-generation designs in quantum computing control systems, telescope focal plane arrays, and neural interface prosthetics. Its dynamic on-resistance compensation technology maintains consistent performance across temperature variations. Other notable applications include: particle accelerator beam controls, underwater sonar arrays, and high-energy physics detector readout systems.
Specifications
- Product Status: Discontinued at Digi-Key
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 2
- On-State Resistance (Max): 600mOhm
- Channel-to-Channel Matching (ΔRon): 50mOhm
- Voltage - Supply, Single (V+): 1.65V ~ 3.6V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 35ns, 25ns
- -3db Bandwidth: 50MHz
- Charge Injection: 8.75pC
- Channel Capacitance (CS(off), CD(off)): 50pF
- Current - Leakage (IS(off)) (Max): 50nA
- Crosstalk: -72dB @ 1MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 10-UFQFN
- Supplier Device Package: 10-UQFN (2.0x1.5)
