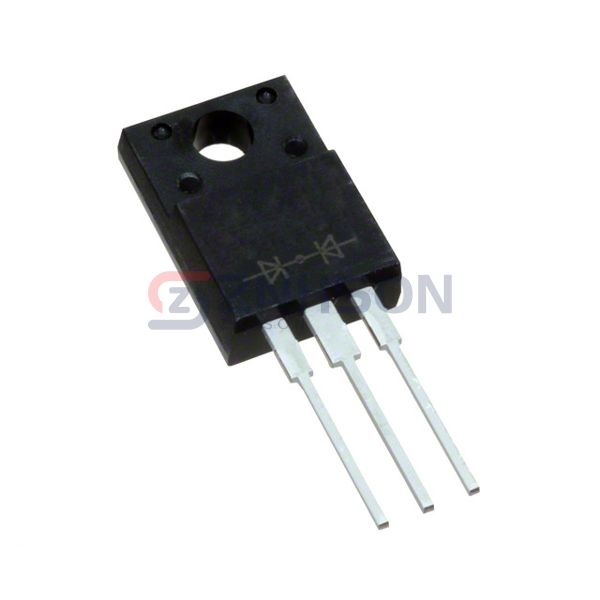

TSF20U60C
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE ARRAY SCHOTT 60V ITO220AB
$2.71
Available to order
Reference Price (USD)
1+
$2.71000
500+
$2.6829
1000+
$2.6558
1500+
$2.6287
2000+
$2.6016
2500+
$2.5745
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSF20U60C rectifier array from Taiwan Semiconductor Corporation redefines efficiency in the Diodes - Rectifiers - Arrays classification. Its optimized chip geometry enables higher surge withstand capability, critical for automotive alternators and arc suppression circuits. This product shines in three-phase rectification and snubber networks, offering aerospace-grade reliability. Taiwan Semiconductor Corporation's precision manufacturing ensures each TSF20U60C meets stringent quality standards for mission-critical applications.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 60 V
- Current - Average Rectified (Io) (per Diode): 10A
- Voltage - Forward (Vf) (Max) @ If: 540 mV @ 10 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 300 µA @ 60 V
- Operating Temperature - Junction: -55°C ~ 150°C
- Mounting Type: Through Hole
- Package / Case: TO-220-3 Full Pack, Isolated Tab
- Supplier Device Package: ITO-220AB
