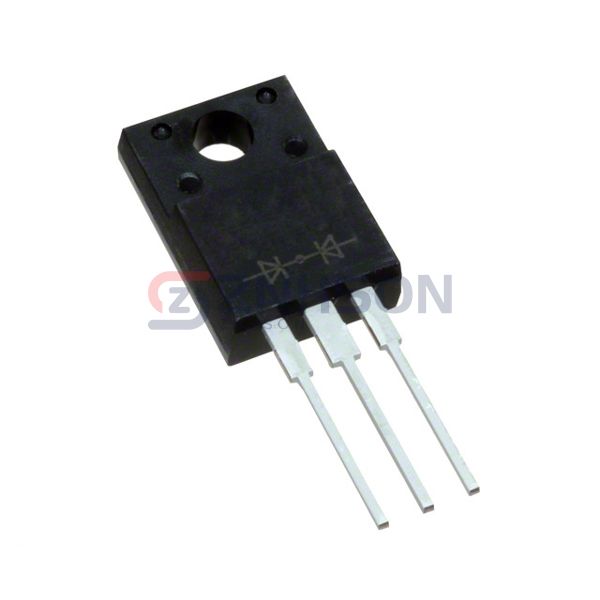

TSF40H120C
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE ARRAY SCHOTT 120V ITO220AB
$3.40
Available to order
Reference Price (USD)
1+
$3.40000
500+
$3.366
1000+
$3.332
1500+
$3.298
2000+
$3.264
2500+
$3.23
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the TSF40H120C by Taiwan Semiconductor Corporation represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With Taiwan Semiconductor Corporation's patented junction design, the TSF40H120C achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 120 V
- Current - Average Rectified (Io) (per Diode): 20A
- Voltage - Forward (Vf) (Max) @ If: 600 mV @ 20 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 500 µA @ 120 V
- Operating Temperature - Junction: -55°C ~ 150°C
- Mounting Type: Through Hole
- Package / Case: TO-220-3 Full Pack, Isolated Tab
- Supplier Device Package: ITO-220AB
