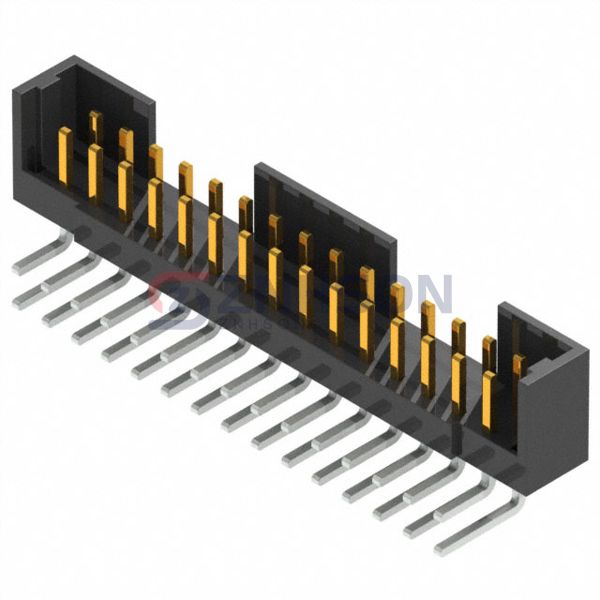

TSH-115-01-L-RA
Samtec Inc.
Samtec Inc.
CONN HEADER R/A 30POS 2MM
$7.94
Available to order
Reference Price (USD)
1+
$4.73000
10+
$4.53600
100+
$3.78000
500+
$3.21300
1,000+
$2.74050
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the TSH-115-01-L-RA rectangular connector header from Samtec Inc. for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Samtec Inc. is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 30
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 3 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.126" (3.20mm)
- Contact Length - Post: 0.096" (2.43mm)
- Overall Contact Length: -
- Insulation Height: 0.207" (5.25mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: End Shrouds
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Amphenol ICC (FCI)
77317-103-32LF
Samtec Inc.
FTSH-120-01-F-D-RA
Samtec Inc.
ZSS-110-04-S-D-820
Samtec Inc.
TMMH-120-01-L-D-RA
Samtec Inc.
TSM-112-01-T-DV-A-TR
Amphenol ICC (FCI)
55101-T11-08
Sullins Connector Solutions
PRPC038SBBN-M71RC
Samtec Inc.
TMMH-107-06-G-D
JST Sales America Inc.

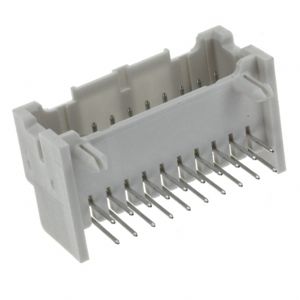

S20B-XADSS-N(LF)(SN)
