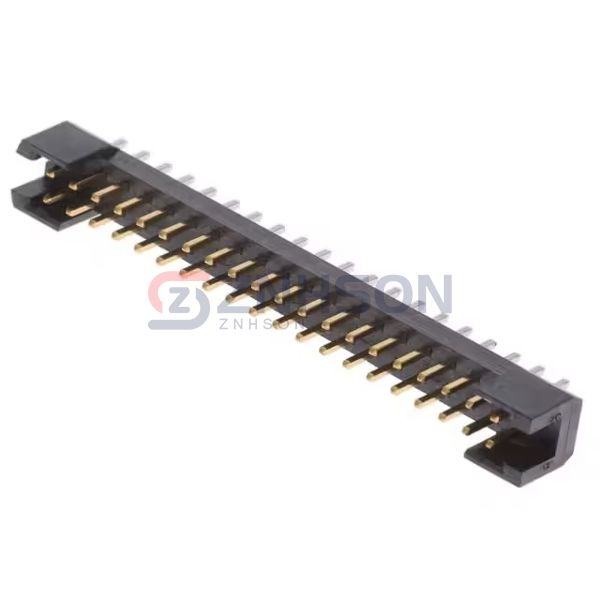

TSH-120-01-F-D
Samtec Inc.
Samtec Inc.
2.00 MM SHROUDED TERMINAL STRIP
$7.16
Available to order
Reference Price (USD)
1+
$7.16000
500+
$7.0884
1000+
$7.0168
1500+
$6.9452
2000+
$6.8736
2500+
$6.802
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the TSH-120-01-F-D rectangular connector header by Samtec Inc.. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the TSH-120-01-F-D ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Samtec Inc. for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 40
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 3 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.126" (3.20mm)
- Contact Length - Post: 0.097" (2.46mm)
- Overall Contact Length: 0.302" (7.67mm)
- Insulation Height: 0.210" (5.33mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: End Shrouds
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Sullins Connector Solutions
PRPC020DFAN-RC
TE Connectivity AMP Connectors
1-87220-7
Samtec Inc.
TSM-103-01-T-DV-A-TR
Molex
0015911042
Samtec Inc.

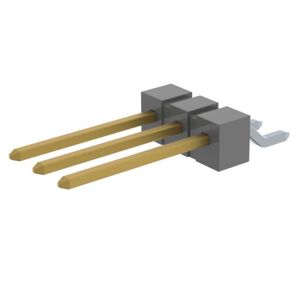

TSM-103-03-L-SH-TR
Harwin Inc.
M50-3930442
CW Industries
CWN-320-14-0000
Samtec Inc.

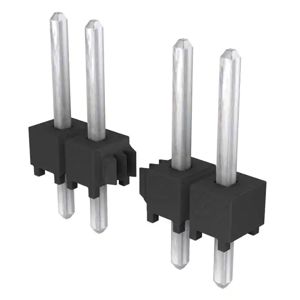

TSW-129-07-T-S
