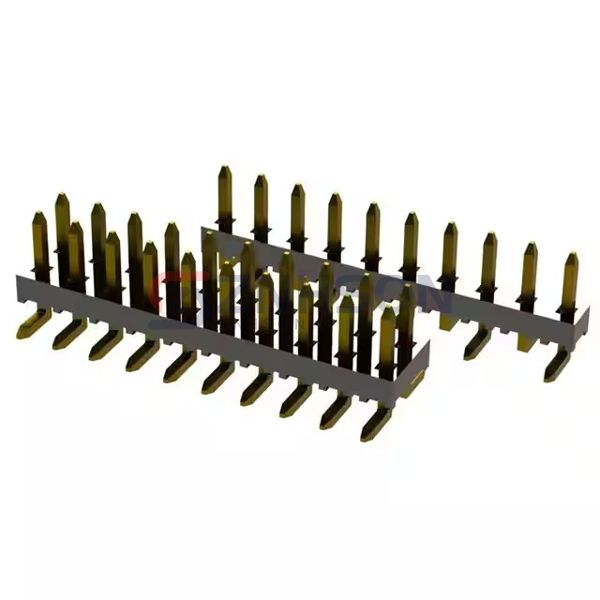

TSHSM-220-D-04-GT-V-P-LF
Major League Electronics
Major League Electronics
.079 Header
$1.77
Available to order
Reference Price (USD)
1+
$1.77000
500+
$1.7523
1000+
$1.7346
1500+
$1.7169
2000+
$1.6992
2500+
$1.6815
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSHSM-220-D-04-GT-V-P-LF by Major League Electronics is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the TSHSM-220-D-04-GT-V-P-LF supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Major League Electronics ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 40
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.126" (3.20mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.059" (1.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA6T), Nylon 6T
- Features: Pick and Place
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: -
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Amphenol ICC (FCI)
68021-130HLF
Samtec Inc.
FTSH-106-03-F-DV-P-TR
Samtec Inc.
TSW-131-08-T-S
Samtec Inc.
TMM-121-01-L-S-SM
Samtec Inc.

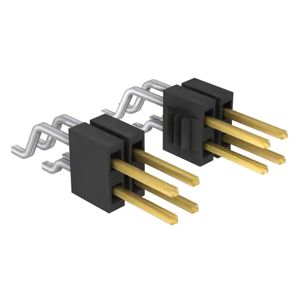

FTSH-131-01-L-DH
Molex

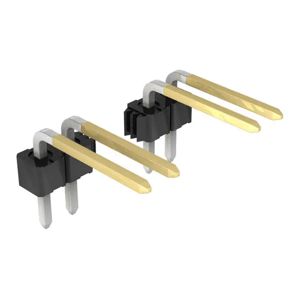

0022286253
Phoenix Contact

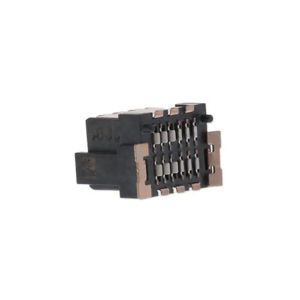

1043731
Sullins Connector Solutions

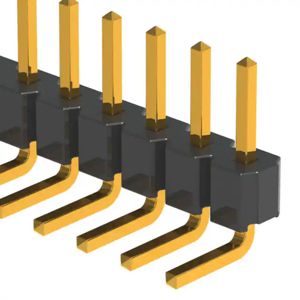

NRPN271PARN-RC
Sullins Connector Solutions

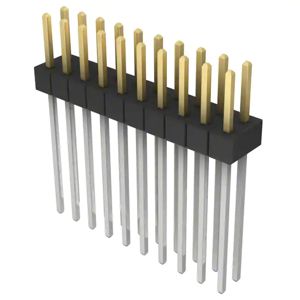

PBC10DAFN
