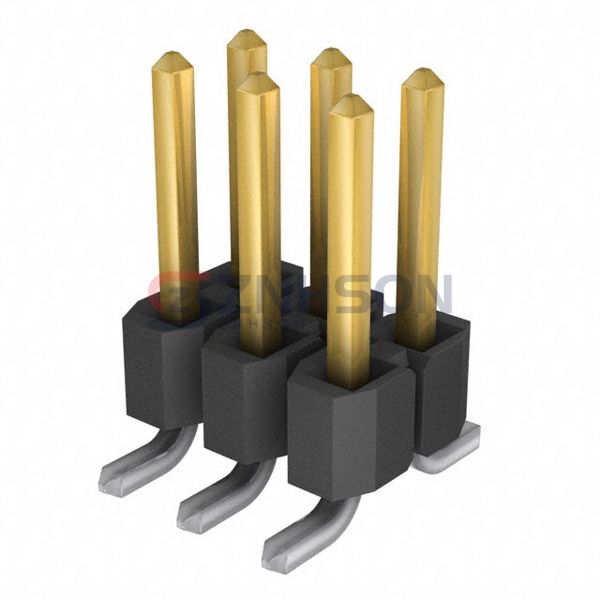

TSM-103-01-L-DV-TR
Samtec Inc.
Samtec Inc.
CONN HEADER SMD 6POS 2.54MM
$1.13
Available to order
Reference Price (USD)
225+
$0.67102
450+
$0.61000
675+
$0.54901
1,125+
$0.48800
1,575+
$0.45750
5,625+
$0.42700
11,250+
$0.40565
22,500+
$0.39650
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the TSM-103-01-L-DV-TR rectangular connector header from Samtec Inc. for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Samtec Inc. is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 6
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
