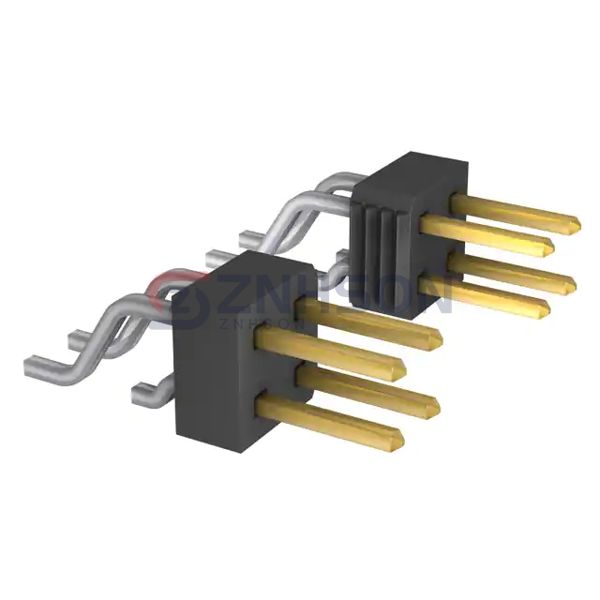

TSM-106-01-L-DH
Samtec Inc.
Samtec Inc.
CONN HEADER SMD R/A 12POS 2.54MM
$2.65
Available to order
Reference Price (USD)
1+
$1.63000
37+
$1.39162
111+
$1.27054
518+
$1.05875
1,036+
$0.90750
5,032+
$0.80465
10,027+
$0.78650
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSM-106-01-L-DH male pin header by Samtec Inc. provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Samtec Inc. guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.240" (6.10mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
TSW-114-17-L-D
Oupiin
2111-1X04G00SB
Samtec Inc.
FTE-153-01-G-DV-A
Harwin Inc.
M20-8770846
Preci-Dip
350-80-154-00-001101
Samtec Inc.
TMM-132-01-F-S-RA
TE Connectivity AMP Connectors
1969694-4
TE Connectivity AMP Connectors
1-1971032-4
TE Connectivity AMP Connectors

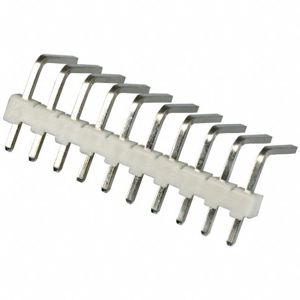

4-644694-0
