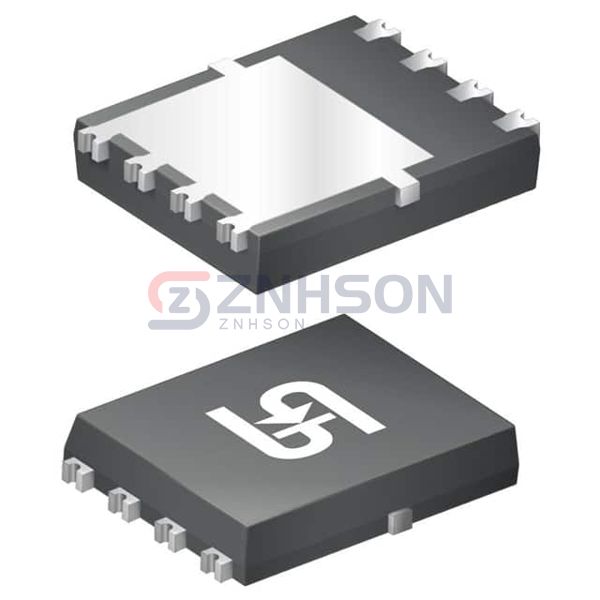

TSM070NH04LCR RLG
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
40V, 54A, SINGLE N-CHANNEL POWER
$2.54
Available to order
Reference Price (USD)
1+
$2.54000
500+
$2.5146
1000+
$2.4892
1500+
$2.4638
2000+
$2.4384
2500+
$2.413
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSM070NH04LCR RLG from Taiwan Semiconductor Corporation sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to Taiwan Semiconductor Corporation's TSM070NH04LCR RLG for their critical applications.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 15A (Ta), 54A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 7mOhm @ 27A, 10V
- Vgs(th) (Max) @ Id: 2.2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 23 nC @ 10 V
- Vgs (Max): ±16V
- Input Capacitance (Ciss) (Max) @ Vds: 1446 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 46.8W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-PDFNU (5x6)
- Package / Case: 8-PowerTDFN
