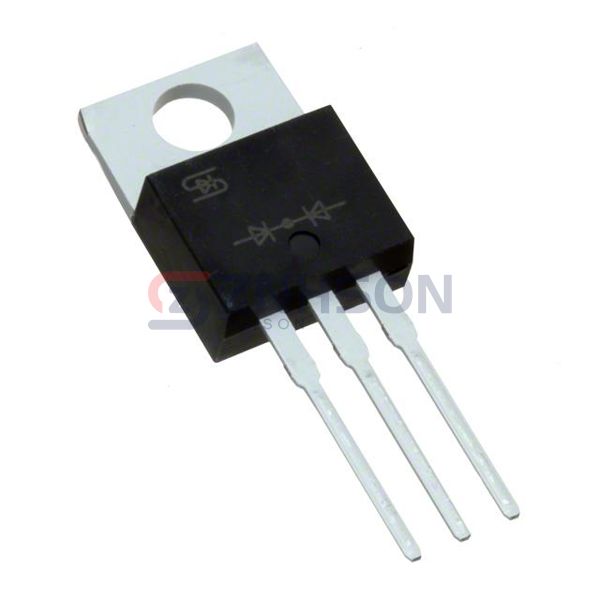

TSM10N80CZ C0G
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
MOSFET N-CH 800V 9.5A TO220
$0.00
Available to order
Reference Price (USD)
1+
$3.36000
10+
$3.00000
100+
$2.45980
500+
$1.99184
1,000+
$1.67986
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSM10N80CZ C0G by Taiwan Semiconductor Corporation is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the TSM10N80CZ C0G is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 800 V
- Current - Continuous Drain (Id) @ 25°C: 9.5A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 1.05Ohm @ 4.75A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 53 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 2336 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 290W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220
- Package / Case: TO-220-3
