TSM1NB60CW RPG
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
MOSFET N-CHANNEL 600V 1A SOT223
$1.60
Available to order
Reference Price (USD)
2,500+
$0.18926
5,000+
$0.17705
12,500+
$0.17094
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSM1NB60CW RPG single MOSFET from Taiwan Semiconductor Corporation is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the TSM1NB60CW RPG is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 600 V
- Current - Continuous Drain (Id) @ 25°C: 1A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 10Ohm @ 500mA, 10V
- Vgs(th) (Max) @ Id: 4.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 6.1 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 138 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 39W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: SOT-223
- Package / Case: TO-261-4, TO-261AA
Related Products
STMicroelectronics
STP6NK60ZFP
Fairchild Semiconductor
FDP6676S
Infineon Technologies
IPB80N06S2L11ATMA2
Microchip Technology

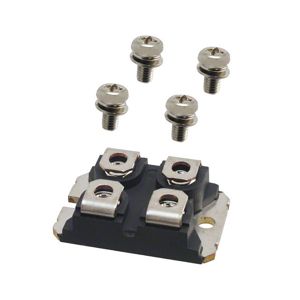

APT40M70JVR
Infineon Technologies
IRF7326D2TRPBF
Vishay Siliconix
SIHB068N60EF-GE3
Nexperia USA Inc.

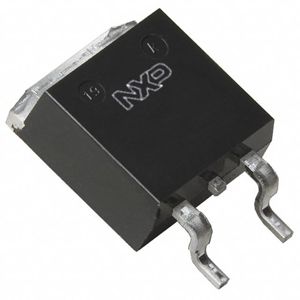

PSMN4R8-100BSEJ
