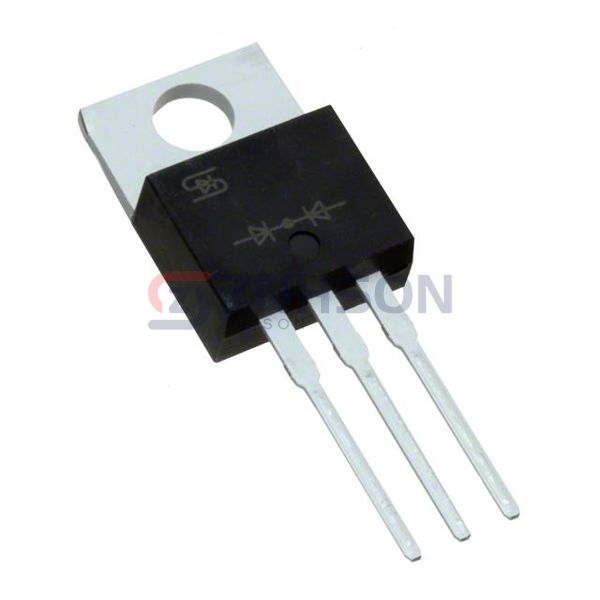

TSM22P10CZ C0G
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
MOSFET P-CH 100V 22A TO220
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSM22P10CZ C0G by Taiwan Semiconductor Corporation is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the TSM22P10CZ C0G is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Obsolete
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 100 V
- Current - Continuous Drain (Id) @ 25°C: 22A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 140mOhm @ 20A, 10V
- Vgs(th) (Max) @ Id: 3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 42 nC @ 10 V
- Vgs (Max): ±25V
- Input Capacitance (Ciss) (Max) @ Vds: 2250 pF @ 30 V
- FET Feature: -
- Power Dissipation (Max): 125W (Tc)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220
- Package / Case: TO-220-3
Related Products
Panasonic Electronic Components
2SK0601G0L
onsemi
MTD6N20ET4G
Infineon Technologies
IRFR13N15DTRR
Infineon Technologies
IPP086N10N3GHKSA1
Infineon Technologies
IPB09N03LA
Renesas Electronics America Inc
2SK160A-T1B-A
onsemi
NVMFS5C442NLWFT1G
onsemi
FQA28N50_F109
Infineon Technologies

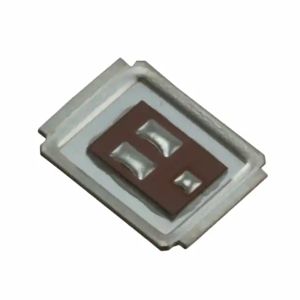

IRF6611TR1PBF
