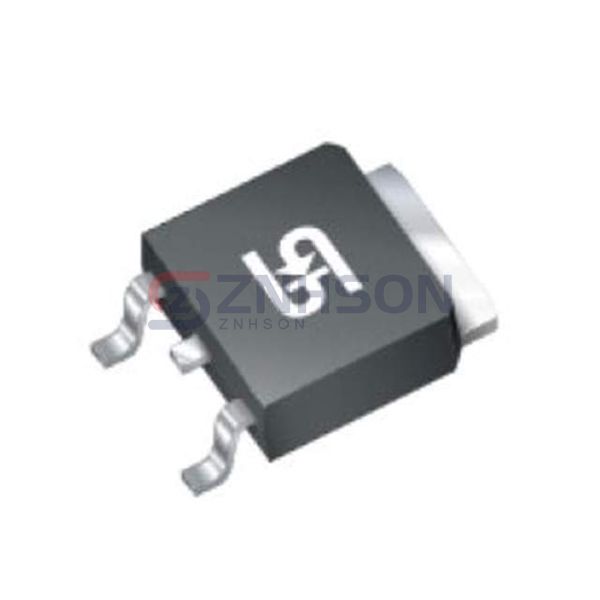

TSM70N10CP ROG
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
MOSFET N-CHANNEL 100V 70A TO252
$0.00
Available to order
Reference Price (USD)
2,500+
$0.57848
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the TSM70N10CP ROG by Taiwan Semiconductor Corporation, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The TSM70N10CP ROG stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose Taiwan Semiconductor Corporation.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 100 V
- Current - Continuous Drain (Id) @ 25°C: 70A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 13mOhm @ 30A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 145 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 4300 pF @ 30 V
- FET Feature: -
- Power Dissipation (Max): 120W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: TO-252, (D-Pak)
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
