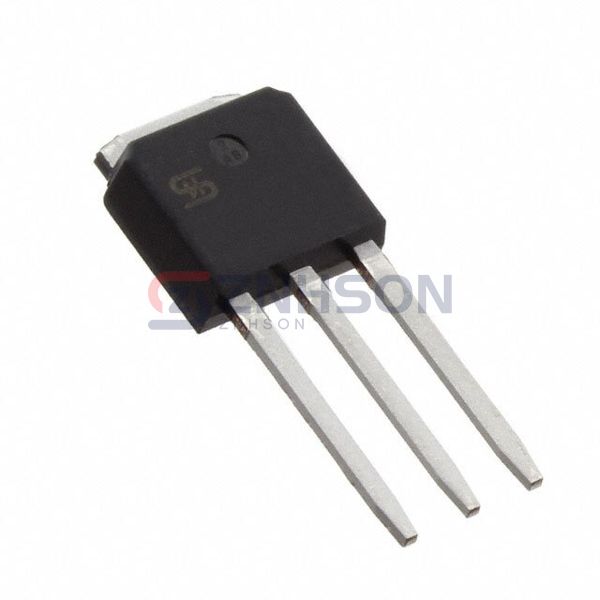

TSM80N950CH C5G
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
MOSFET N-CHANNEL 800V 6A TO251
$3.07
Available to order
Reference Price (USD)
1+
$1.66000
10+
$1.50000
100+
$1.20510
500+
$0.93730
1,875+
$0.77662
3,750+
$0.74984
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the TSM80N950CH C5G by Taiwan Semiconductor Corporation, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the TSM80N950CH C5G is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 800 V
- Current - Continuous Drain (Id) @ 25°C: 6A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 950mOhm @ 3A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 19.6 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 691 pF @ 100 V
- FET Feature: -
- Power Dissipation (Max): 110W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-251 (IPAK)
- Package / Case: TO-251-3 Short Leads, IPak, TO-251AA
Related Products
onsemi
NDT01N60T1G
onsemi
FDMS86200
Nexperia USA Inc.
PMV88ENEAR
Infineon Technologies
IPB160N04S4LH1ATMA1
Alpha & Omega Semiconductor Inc.
AOT470
Microchip Technology
APT40M35JVR
onsemi
MTP1N60E
Toshiba Semiconductor and Storage
TK16E60W5,S1VX
Vishay Siliconix

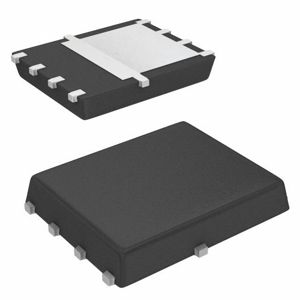

SIR872DP-T1-GE3
