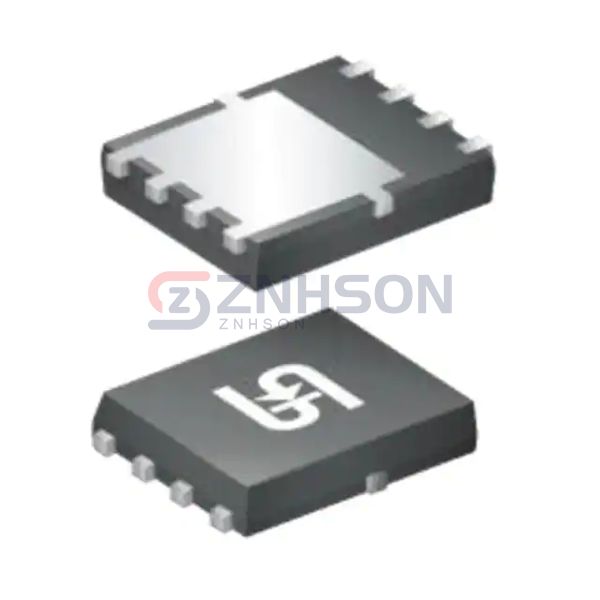

TSN520M60
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE SCHOTTKY 60V 20A 8PDFN
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSN520M60 by Taiwan Semiconductor Corporation is a top-tier single rectifier diode designed for high-efficiency power conversion. Belonging to the Diodes - Rectifiers - Single category, it features ultra-fast recovery times and minimal power dissipation, making it perfect for switch-mode power supplies and DC-DC converters. Its versatile applications span industrial motor drives, solar inverters, and consumer electronics, where consistent performance is essential. Engineered for durability, the TSN520M60 ensures long-term reliability even in harsh operating conditions. Trust Taiwan Semiconductor Corporation for cutting-edge semiconductor solutions that drive innovation.
Specifications
- Product Status: Obsolete
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 60 V
- Current - Average Rectified (Io): 20A
- Voltage - Forward (Vf) (Max) @ If: 580 mV @ 20 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 500 µA @ 60 V
- Capacitance @ Vr, F: -
- Mounting Type: Surface Mount
- Package / Case: 8-PowerTDFN
- Supplier Device Package: 8-PDFN (5x6)
- Operating Temperature - Junction: -55°C ~ 150°C
Related Products
Rohm Semiconductor
RF051VA1STR
Micro Commercial Co
MBRX0530-TP
Vishay General Semiconductor - Diodes Division
SS5P5HM3/86A
Rohm Semiconductor
RB520ZS-308OPT2R
Toshiba Semiconductor and Storage
CRG04(TE85L,Q,M)
Comchip Technology
CSFM104-G
Vishay General Semiconductor - Diodes Division
UH3B-E3/57T
Fairchild Semiconductor
RB521S30
Taiwan Semiconductor Corporation

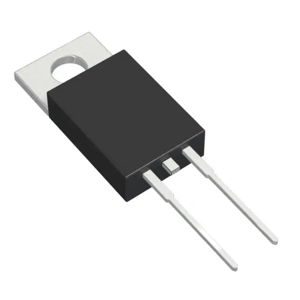

MBR16150HC0G
