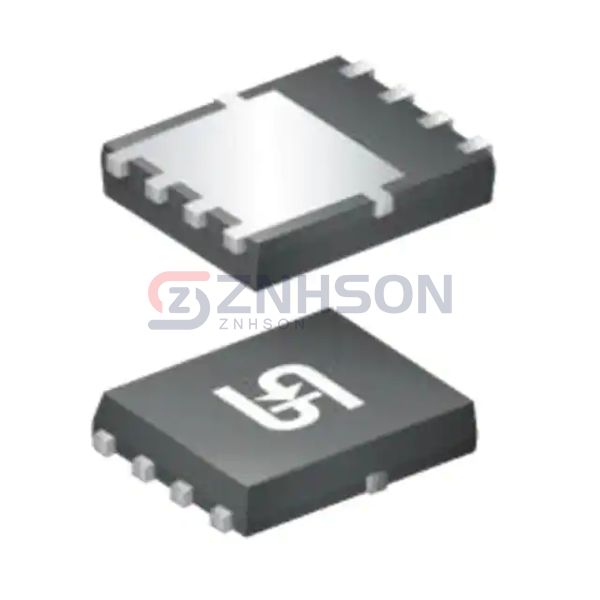

TSN520M60 S4G
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE GEN PURP 60V 20A 8PDFN
$0.00
Available to order
Reference Price (USD)
12,000+
$0.35182
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit performance with the TSN520M60 S4G single rectifier diode from Taiwan Semiconductor Corporation. This Discrete Semiconductor Product is engineered for precision and efficiency, offering low forward voltage and high surge tolerance. Ideal for rectification in power adapters, welding equipment, and UPS systems, the TSN520M60 S4G delivers consistent results under heavy loads. Its applications extend to aerospace and defense systems, where reliability cannot be compromised. Taiwan Semiconductor Corporation's TSN520M60 S4G is the go-to choice for engineers seeking robust and high-performing rectifier diodes.
Specifications
- Product Status: Obsolete
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 60 V
- Current - Average Rectified (Io): 20A
- Voltage - Forward (Vf) (Max) @ If: 580 mV @ 20 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 500 µA @ 60 V
- Capacitance @ Vr, F: -
- Mounting Type: Surface Mount
- Package / Case: 8-PowerTDFN
- Supplier Device Package: 8-PDFN (5x6)
- Operating Temperature - Junction: -55°C ~ 150°C
