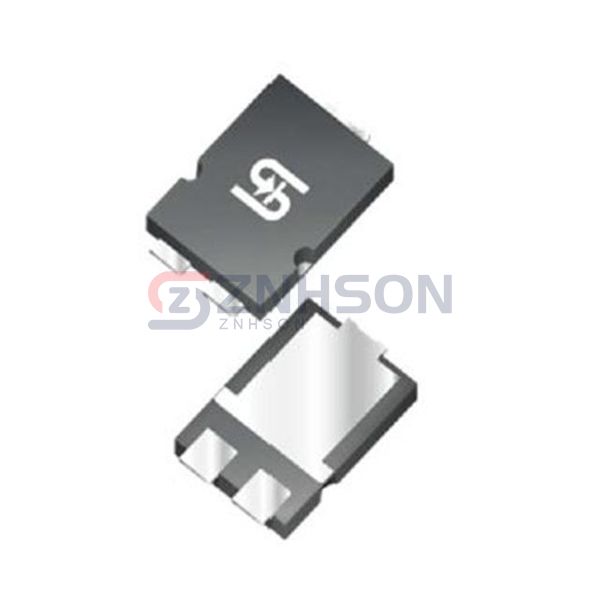

TSP15U120S S1G
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE SCHOTTKY 120V 15A TO277A
$0.95
Available to order
Reference Price (USD)
1,500+
$0.37695
3,000+
$0.35182
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic designs with the TSP15U120S S1G single rectifier diode from Taiwan Semiconductor Corporation. This diode, part of the Discrete Semiconductor Products family, offers exceptional rectification efficiency and thermal stability. Its compact design and high current capacity make it suitable for space-constrained applications like mobile devices, laptops, and IoT gadgets. The TSP15U120S S1G is also ideal for automotive electronics, including alternators and voltage regulators, where reliability is critical. Taiwan Semiconductor Corporation's commitment to innovation ensures that the TSP15U120S S1G meets the highest industry standards for performance and longevity.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 120 V
- Current - Average Rectified (Io): 15A
- Voltage - Forward (Vf) (Max) @ If: 750 mV @ 15 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 250 µA @ 120 V
- Capacitance @ Vr, F: -
- Mounting Type: Surface Mount
- Package / Case: TO-277, 3-PowerDFN
- Supplier Device Package: TO-277A (SMPC)
- Operating Temperature - Junction: -55°C ~ 150°C
