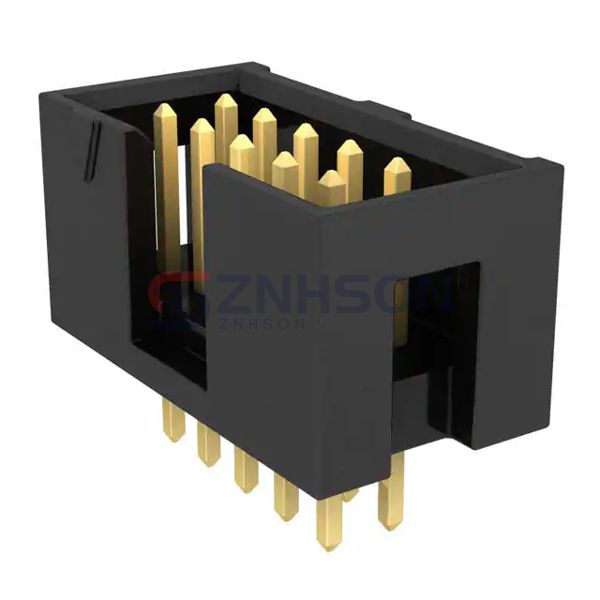

TSS-105-01-G-D
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 10POS 2.54MM
$3.91
Available to order
Reference Price (USD)
1+
$2.41000
10+
$2.18800
100+
$1.87530
500+
$1.56276
1,000+
$1.33950
5,000+
$1.18769
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSS-105-01-G-D by Samtec Inc. is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Samtec Inc. delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.115" (2.92mm)
- Overall Contact Length: 0.480" (12.19mm)
- Insulation Height: 0.350" (8.89mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
1-640383-9
TE Connectivity AMP Connectors
770873-2
TE Connectivity AMP Connectors
147278-6
Preci-Dip
800-V3-028-12-002101

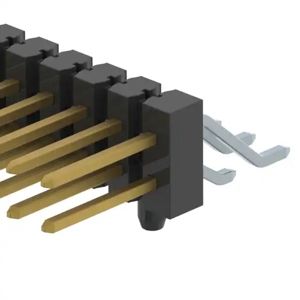

Samtec Inc.
TSM-118-01-T-DH
Harwin Inc.
M80-8281222
Harwin Inc.
M80-8513442
Preci-Dip
499-80-234-10-009101
Samtec Inc.

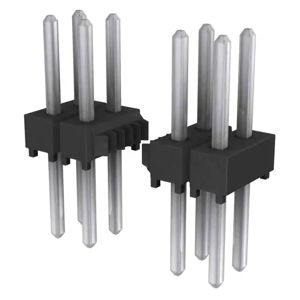

TSW-109-26-T-D
