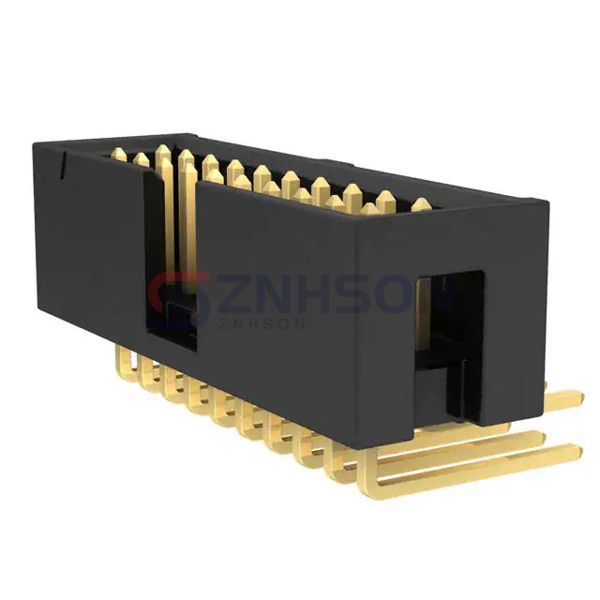

TST-110-04-G-D-RA
Samtec Inc.
Samtec Inc.
CONN HEADER R/A 20POS 2.54MM
$5.78
Available to order
Reference Price (USD)
1+
$3.30000
17+
$3.16824
102+
$2.64000
510+
$2.24400
1,003+
$1.91400
5,015+
$1.71600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TST-110-04-G-D-RA by Samtec Inc. is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the TST-110-04-G-D-RA supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Samtec Inc. ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: -
- Insulation Height: 0.365" (9.27mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3.4A per Contact
- Voltage Rating: -
