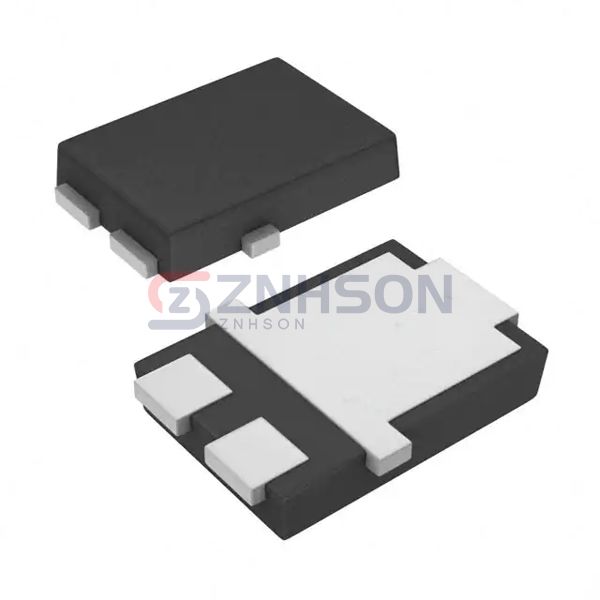

TSUP10M45SH
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
10A, 45V, SCHOTTKY RECTIFIER
$0.68
Available to order
Reference Price (USD)
1+
$0.68220
500+
$0.675378
1000+
$0.668556
1500+
$0.661734
2000+
$0.654912
2500+
$0.64809
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the TSUP10M45SH single rectifier diode by Taiwan Semiconductor Corporation, a key component in the Diodes - Rectifiers - Single classification. This diode excels in providing stable and efficient rectification for circuits requiring precise voltage control. With its high surge current capability and low leakage, it is perfect for use in power management systems, LED drivers, and battery chargers. The TSUP10M45SH is widely utilized in telecommunications, renewable energy systems, and medical devices, ensuring reliable operation under varying load conditions. Choose Taiwan Semiconductor Corporation's TSUP10M45SH for unmatched quality and performance in discrete semiconductor solutions.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 45 V
- Current - Average Rectified (Io): 10A (DC)
- Voltage - Forward (Vf) (Max) @ If: 600 mV @ 10 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 200 µA @ 45 V
- Capacitance @ Vr, F: 1099pF @ 4V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: TO-277, 3-PowerDFN
- Supplier Device Package: SMPC4.6U
- Operating Temperature - Junction: -55°C ~ 175°C
