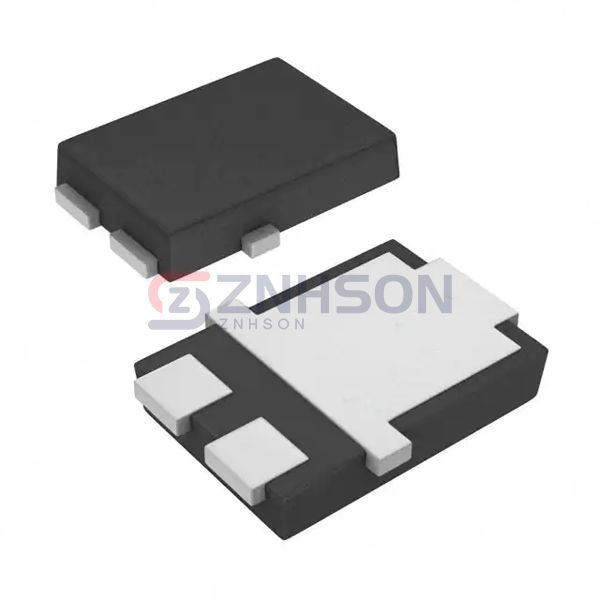

TSUP10M60SH S1G
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
10A, 60V, SCHOTTKY RECTIFIER
$1.68
Available to order
Reference Price (USD)
1+
$1.68000
500+
$1.6632
1000+
$1.6464
1500+
$1.6296
2000+
$1.6128
2500+
$1.596
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSUP10M60SH S1G by Taiwan Semiconductor Corporation is a top-tier single rectifier diode designed for high-efficiency power conversion. Belonging to the Diodes - Rectifiers - Single category, it features ultra-fast recovery times and minimal power dissipation, making it perfect for switch-mode power supplies and DC-DC converters. Its versatile applications span industrial motor drives, solar inverters, and consumer electronics, where consistent performance is essential. Engineered for durability, the TSUP10M60SH S1G ensures long-term reliability even in harsh operating conditions. Trust Taiwan Semiconductor Corporation for cutting-edge semiconductor solutions that drive innovation.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 60 V
- Current - Average Rectified (Io): 10A (DC)
- Voltage - Forward (Vf) (Max) @ If: 640 mV @ 10 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 250 µA @ 60 V
- Capacitance @ Vr, F: 658pF @ 4V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: TO-277, 3-PowerDFN
- Supplier Device Package: SMPC4.6U
- Operating Temperature - Junction: -55°C ~ 175°C
