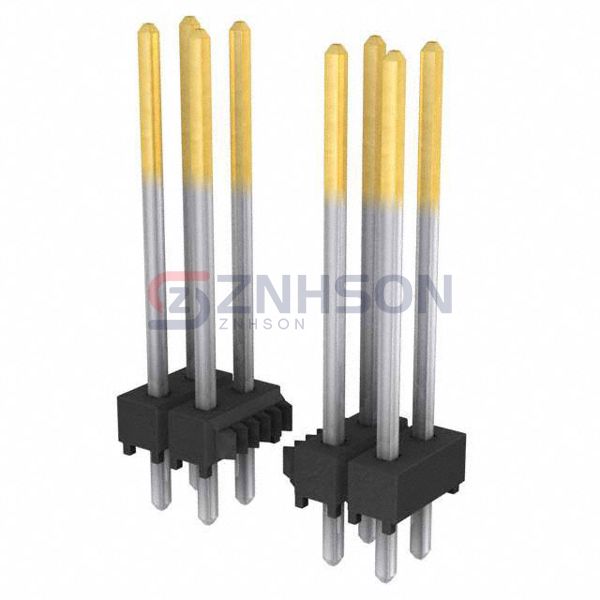

TSW-125-17-L-D
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 50POS 2.54MM
$4.71
Available to order
Reference Price (USD)
1+
$4.31000
10+
$4.13300
25+
$3.78840
50+
$3.61620
100+
$3.44400
250+
$3.01352
500+
$2.92740
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSW-125-17-L-D by Samtec Inc. is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Samtec Inc. delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 50
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.620" (15.75mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: 0.830" (21.08mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
TSW-126-08-T-S
TE Connectivity AMP Connectors
6-104074-9
Sullins Connector Solutions
PEC20SFAN
Molex

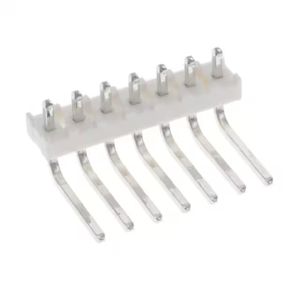

0026603070
Hirose Electric Co Ltd

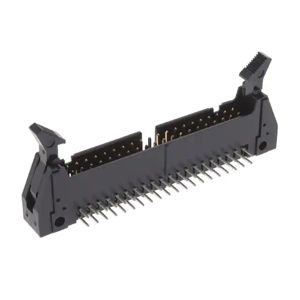

HIF3BA-40PA-2.54DS(63)
Molex

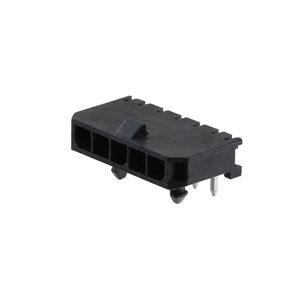

0436500502
Oupiin

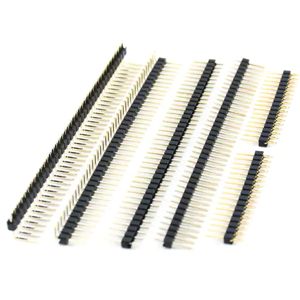

2011-1X10G00LB
