TSW-150-14-S-D
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 100POS 2.54MM
$19.03
Available to order
Reference Price (USD)
1+
$10.89000
10+
$9.74100
100+
$8.02200
500+
$6.34120
1,000+
$5.44350
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSW-150-14-S-D male pin header by Samtec Inc. provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Samtec Inc. guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 100
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.320" (8.13mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: 0.530" (13.46mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Molex
0026482050
CNC Tech
4282-1-0100-14-SP
Samtec Inc.
MMT-118-02-S-SH
Preci-Dip
350-V3-157-00-106101
Amphenol ICC (FCI)
10114829-10204LF
TE Connectivity AMP Connectors
9-146285-0-07
TE Connectivity AMP Connectors
1376382-1
TE Connectivity AMP Connectors

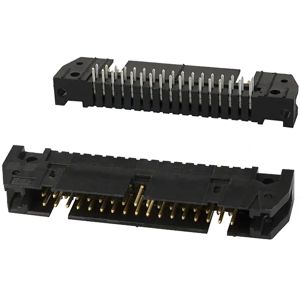

5102161-8
Samtec Inc.

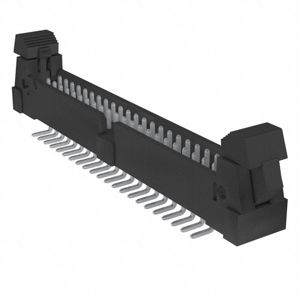

EHT-122-01-T-D-SM
