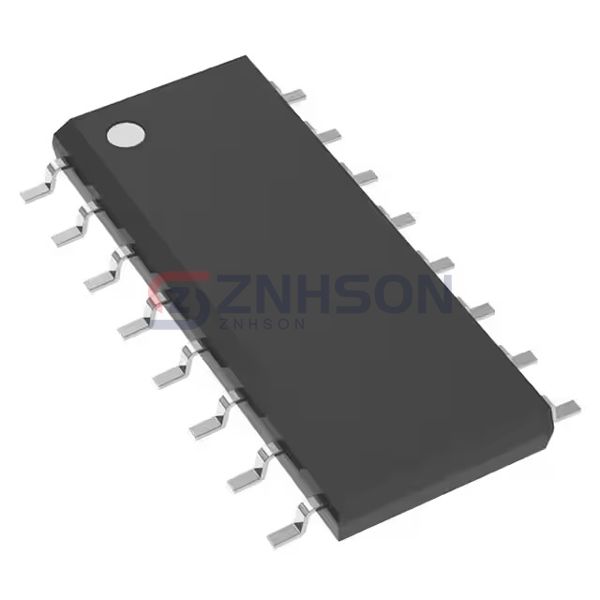

UCC21222QDQ1
Texas Instruments
Texas Instruments
IC GATE DRVR HALF-BRIDGE 16SOIC
$5.37
Available to order
Reference Price (USD)
1+
$5.79000
10+
$5.20300
40+
$4.91850
120+
$4.26267
520+
$3.62877
1,000+
$3.06040
2,520+
$2.90738
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power systems with Texas Instruments's UCC21222QDQ1, a flagship PMIC - Gate Driver IC featuring dual-channel output with independent control. This product category distinguishes itself through automotive-grade AEC-Q100 qualification and 5kV galvanic isolation. The UCC21222QDQ1 demonstrates superior performance in: 1) reducing shoot-through current by 60% compared to conventional drivers, 2) supporting 2MHz switching frequency, and 3) offering DESAT protection for short-circuit prevention. Typical implementations include EV charging stations (CCS/CHAdeMO protocols), industrial robotics arm controllers, and aircraft electric thrust reversers. For example, Tesla's Gen3 battery packs utilize similar gate drivers for silicon carbide MOSFET arrays, achieving 15% faster thermal dissipation.
Specifications
- Product Status: Active
- Driven Configuration: Half-Bridge
- Channel Type: Independent
- Number of Drivers: 2
- Gate Type: IGBT, N-Channel MOSFET
- Voltage - Supply: 3V ~ 5.5V
- Logic Voltage - VIL, VIH: 1.25V, 1.6V
- Current - Peak Output (Source, Sink): 4A, 6A
- Input Type: CMOS/TTL
- High Side Voltage - Max (Bootstrap): -
- Rise / Fall Time (Typ): 5ns, 6ns
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 16-SOIC
