UF3006PT_T0_00001
Panjit International Inc.
Panjit International Inc.
ULTRA FAST RECOVERY RECTIFIERS
$1.72
Available to order
Reference Price (USD)
1+
$1.72000
500+
$1.7028
1000+
$1.6856
1500+
$1.6684
2000+
$1.6512
2500+
$1.634
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the UF3006PT_T0_00001 by Panjit International Inc. represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With Panjit International Inc.'s patented junction design, the UF3006PT_T0_00001 achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 600 V
- Current - Average Rectified (Io) (per Diode): 15A
- Voltage - Forward (Vf) (Max) @ If: 1.7 V @ 15 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 90 ns
- Current - Reverse Leakage @ Vr: 10 µA @ 600 V
- Operating Temperature - Junction: -55°C ~ 150°C
- Mounting Type: Through Hole

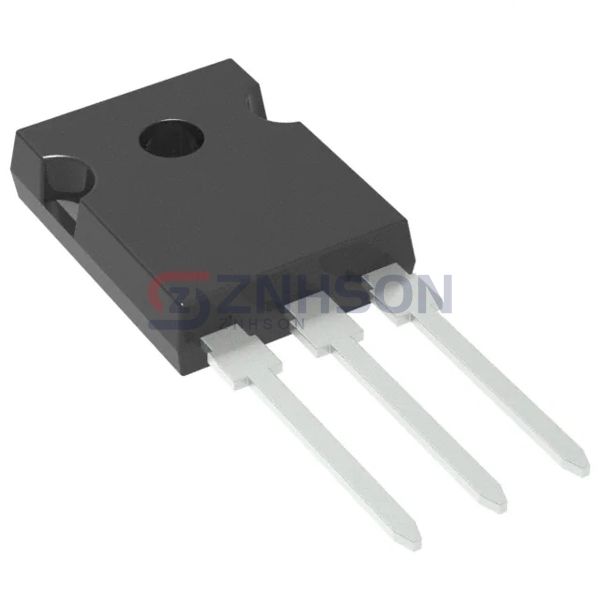

- Package / Case: TO-247-3
- Supplier Device Package: TO-247AD (TO-3P)
