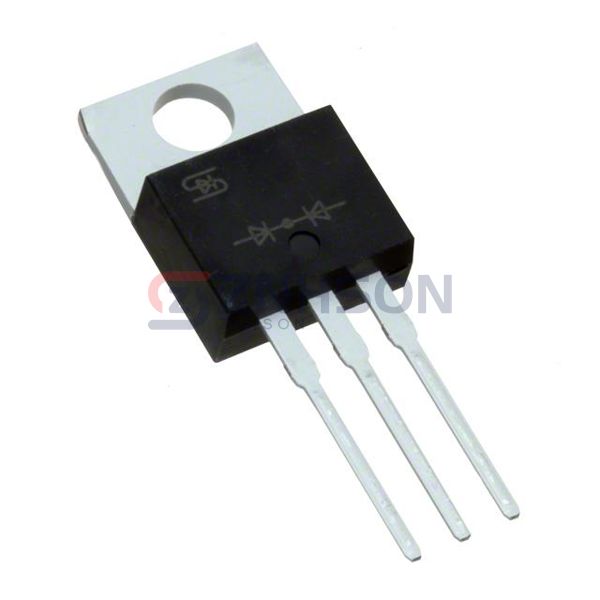

UG1004G
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE ARRAY GP 200V 10A TO220AB
$0.54
Available to order
Reference Price (USD)
1+
$0.53856
500+
$0.5331744
1000+
$0.5277888
1500+
$0.5224032
2000+
$0.5170176
2500+
$0.511632
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Introducing Taiwan Semiconductor Corporation's UG1004G, a game-changing diode array in the Discrete Semiconductor Products category. Specifically engineered for high-frequency rectification, this component minimizes switching losses in SMPS and RF circuits. Its hermetically sealed package provides exceptional moisture resistance for outdoor applications like traffic signal systems and railway electronics. Trust Taiwan Semiconductor Corporation's decades of semiconductor expertise embedded in every UG1004G for uncompromising performance.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 200 V
- Current - Average Rectified (Io) (per Diode): 10A
- Voltage - Forward (Vf) (Max) @ If: 950 mV @ 5 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 22 ns
- Current - Reverse Leakage @ Vr: 10 µA @ 200 V
- Operating Temperature - Junction: -55°C ~ 175°C
- Mounting Type: Through Hole
- Package / Case: TO-220-3
- Supplier Device Package: TO-220AB
