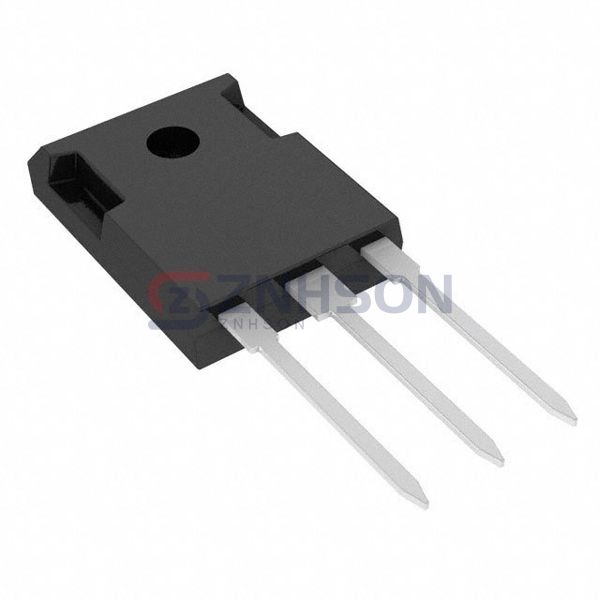

UG30BPT-E3/45
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
DIODE ARRAY GP 100V 30A TO3P
$2.23
Available to order
Reference Price (USD)
750+
$2.30732
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The UG30BPT-E3/45 from Vishay General Semiconductor - Diodes Division is a standout in the Discrete Semiconductor Products family, offering unmatched rectification efficiency in compact diode arrays. Designed for high-density PCB layouts, this product excels in bridge rectifiers and polarity protection circuits. Its low leakage current and high-temperature stability make it a favorite for telecommunications, consumer electronics, and medical devices. Choose Vishay General Semiconductor - Diodes Division's UG30BPT-E3/45 for applications where space-saving design meets industrial-grade reliability.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 100 V
- Current - Average Rectified (Io) (per Diode): 30A
- Voltage - Forward (Vf) (Max) @ If: 1.15 V @ 30 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 35 ns
- Current - Reverse Leakage @ Vr: 15 µA @ 100 V
- Operating Temperature - Junction: -65°C ~ 150°C
- Mounting Type: Through Hole
- Package / Case: TO-3P-3, SC-65-3
- Supplier Device Package: TO-247AD (TO-3P)
