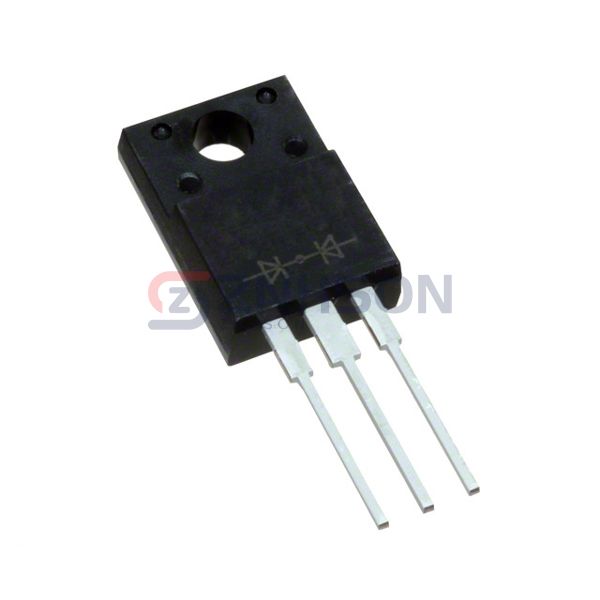

UGF1005G
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE ARRAY GP 300V ITO-220AB
$0.51
Available to order
Reference Price (USD)
1+
$0.50589
500+
$0.5008311
1000+
$0.4957722
1500+
$0.4907133
2000+
$0.4856544
2500+
$0.4805955
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the high-performance UGF1005G from Taiwan Semiconductor Corporation, a premium diode rectifier array designed for efficient power conversion in demanding applications. As part of the Discrete Semiconductor Products category, this diode array ensures reliable rectification with low forward voltage drop and high surge current capability. Ideal for power supplies, motor controls, and inverters, the UGF1005G delivers exceptional durability and thermal performance. Whether you're designing industrial equipment or automotive electronics, trust Taiwan Semiconductor Corporation's cutting-edge technology for superior efficiency and longevity.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 300 V
- Current - Average Rectified (Io) (per Diode): 10A
- Voltage - Forward (Vf) (Max) @ If: 1.25 V @ 5 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 20 ns
- Current - Reverse Leakage @ Vr: 10 µA @ 300 V
- Operating Temperature - Junction: -55°C ~ 175°C
- Mounting Type: Through Hole
- Package / Case: TO-220-3 Full Pack, Isolated Tab
- Supplier Device Package: ITO-220AB
