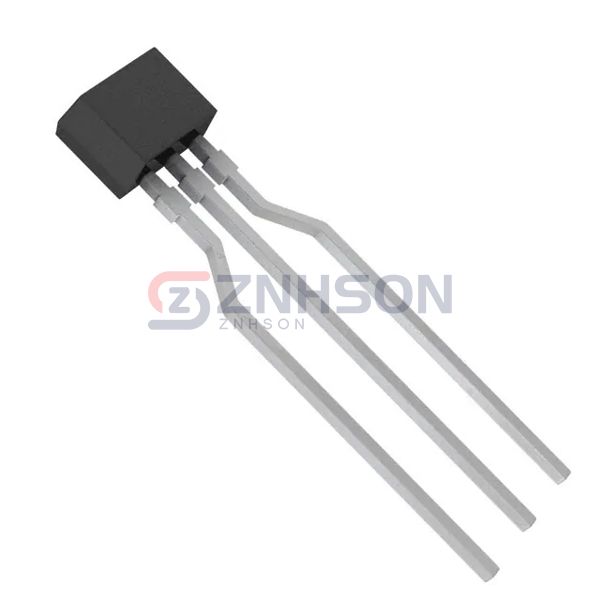

UNR422100A
Panasonic Electronic Components
Panasonic Electronic Components
TRANS PREBIAS NPN 300MW NS-B1
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your PCB layout with Panasonic Electronic Components's space-saving UNR422100A. This pre-configured bipolar transistor eliminates external biasing components while delivering 250mW power dissipation. Applications span from smart home appliances to automotive lighting systems. Panasonic Electronic Components combines 20+ years of semiconductor expertise with cutting-edge silicon technology in this robust solution.
Specifications
- Product Status: Obsolete
- Transistor Type: NPN - Pre-Biased
- Current - Collector (Ic) (Max): 500 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 2.2 kOhms
- Resistor - Emitter Base (R2): 2.2 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 40 @ 100mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 5mA, 100mA
- Current - Collector Cutoff (Max): 1µA
- Frequency - Transition: 200 MHz
- Power - Max: 300 mW
- Mounting Type: Through Hole
- Package / Case: 3-SIP
- Supplier Device Package: NS-B1
