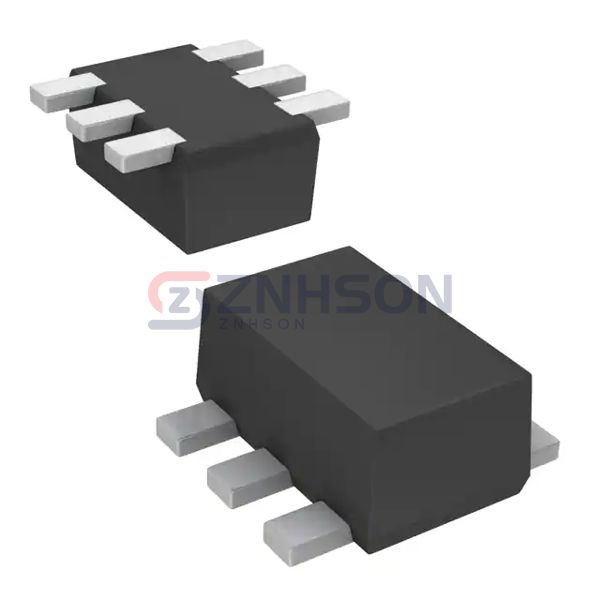

UP0421500L
Panasonic Electronic Components
Panasonic Electronic Components
TRANS PREBIAS DUAL NPN SSMINI6
$0.00
Available to order
Reference Price (USD)
8,000+
$0.19127
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Introducing Panasonic Electronic Components's UP0421500L, a premium pre-biased BJT array that combines innovation with practicality. This transistor array is optimized for low-voltage applications, offering high gain and minimal distortion. Its compact footprint and integrated bias network make it perfect for wearable devices, smart home systems, and medical instruments. Panasonic Electronic Components's dedication to excellence ensures that the UP0421500L meets the most demanding specifications. With superior ESD protection and long-term stability, this product is a must-have for modern electronic designs.
Specifications
- Product Status: Obsolete
- Transistor Type: 2 NPN - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 10kOhms
- Resistor - Emitter Base (R2): -
- DC Current Gain (hFE) (Min) @ Ic, Vce: 160 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 300µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 150MHz
- Power - Max: 125mW
- Mounting Type: Surface Mount
- Package / Case: SOT-563, SOT-666
- Supplier Device Package: SSMINI6-F1
