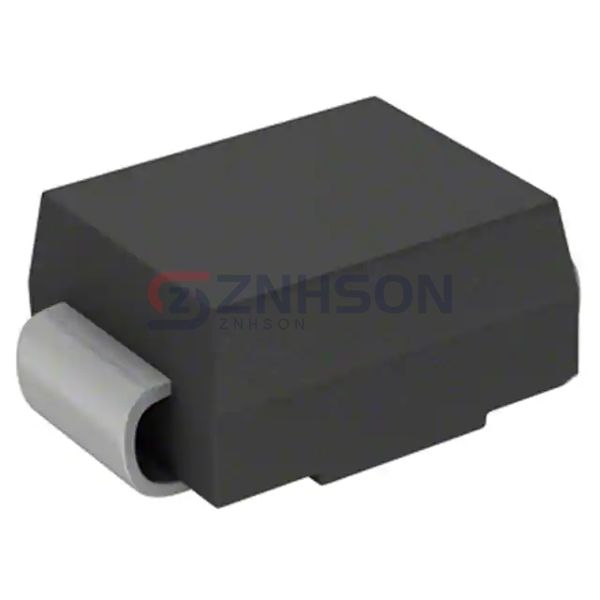

US1M-13
Diodes Incorporated
Diodes Incorporated
DIODE GEN PURP 1KV 1A SMA
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic designs with the US1M-13 single rectifier diode from Diodes Incorporated. This diode, part of the Discrete Semiconductor Products family, offers exceptional rectification efficiency and thermal stability. Its compact design and high current capacity make it suitable for space-constrained applications like mobile devices, laptops, and IoT gadgets. The US1M-13 is also ideal for automotive electronics, including alternators and voltage regulators, where reliability is critical. Diodes Incorporated's commitment to innovation ensures that the US1M-13 meets the highest industry standards for performance and longevity.
Specifications
- Product Status: Discontinued at Digi-Key
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 1000 V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 1.7 V @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 75 ns
- Current - Reverse Leakage @ Vr: 5 µA @ 1000 V
- Capacitance @ Vr, F: 10pF @ 4V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: DO-214AC, SMA
- Supplier Device Package: SMA
- Operating Temperature - Junction: -65°C ~ 150°C
