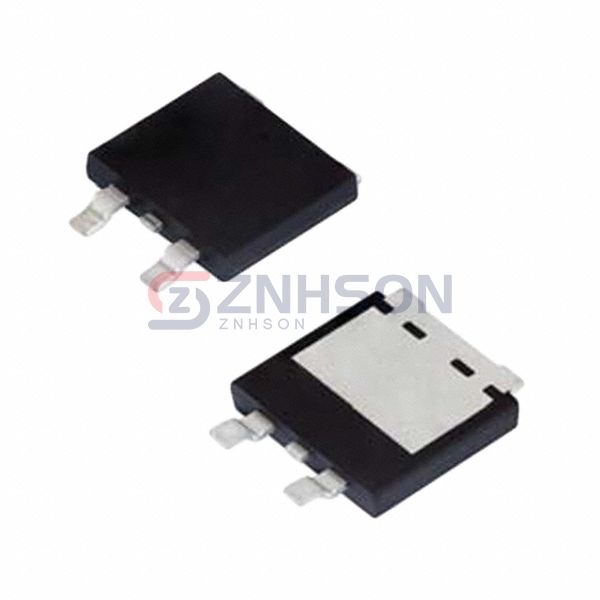

V30DM120CHM3/I
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
DIODE SCHOTTKY 120V 15A SMPD
$0.82
Available to order
Reference Price (USD)
4,000+
$0.80750
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Power your designs with the V30DM120CHM3/I diode rectifier array by Vishay General Semiconductor - Diodes Division, a flagship product in the Diodes - Rectifiers - Arrays subcategory. Featuring dual-diode common cathode/anode configurations, this versatile component excels in voltage doubling circuits and flyback converters. Its lead-free construction meets global environmental standards while maintaining robust performance in appliance controls and HVAC systems. Vishay General Semiconductor - Diodes Division delivers this industry-leading solution with full traceability and RoHS compliance.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 120 V
- Current - Average Rectified (Io) (per Diode): 15A
- Voltage - Forward (Vf) (Max) @ If: 970 mV @ 15 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 800 µA @ 120 V
- Operating Temperature - Junction: -40°C ~ 175°C
- Mounting Type: Surface Mount
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab) Variant
- Supplier Device Package: TO-263AC (SMPD)
