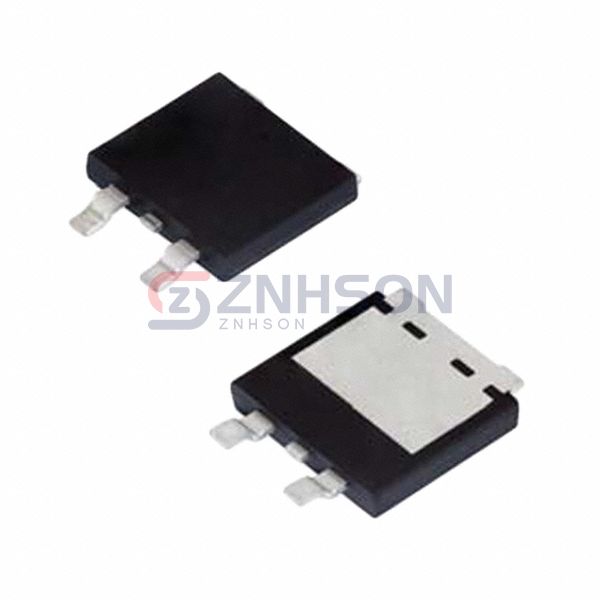

V40D100CHM3/I
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
DIODE SCHOTTKY 120V 15A TO263AC
$2.32
Available to order
Reference Price (USD)
2,000+
$1.16708
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The V40D100CHM3/I from Vishay General Semiconductor - Diodes Division is a standout in the Discrete Semiconductor Products family, offering unmatched rectification efficiency in compact diode arrays. Designed for high-density PCB layouts, this product excels in bridge rectifiers and polarity protection circuits. Its low leakage current and high-temperature stability make it a favorite for telecommunications, consumer electronics, and medical devices. Choose Vishay General Semiconductor - Diodes Division's V40D100CHM3/I for applications where space-saving design meets industrial-grade reliability.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 120 V
- Current - Average Rectified (Io) (per Diode): 15A
- Voltage - Forward (Vf) (Max) @ If: 970 mV @ 15 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 800 µA @ 120 V
- Operating Temperature - Junction: -40°C ~ 175°C
- Mounting Type: Surface Mount
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab) Variant
- Supplier Device Package: TO-263AC (SMPD)
