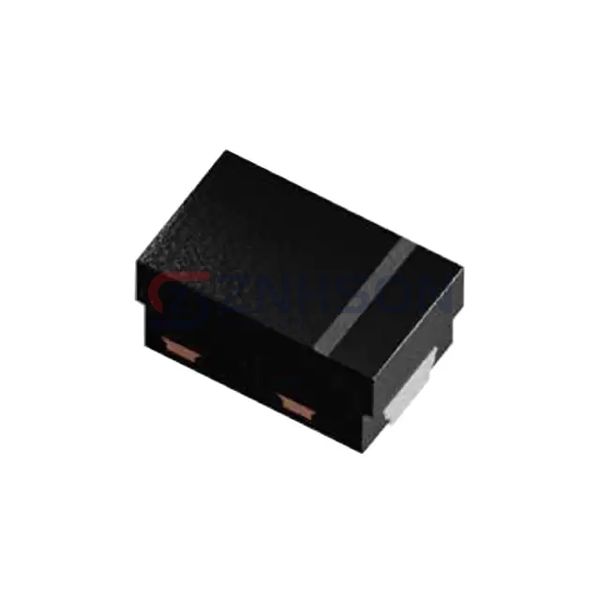

VBUS05N1-DD1HG3-08
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
5.5V;IR=0.1UA;IP=4A;P=90W;CD=0.4
$0.40
Available to order
Reference Price (USD)
1+
$0.40000
500+
$0.396
1000+
$0.392
1500+
$0.388
2000+
$0.384
2500+
$0.38
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Protect your electronics with the VBUS05N1-DD1HG3-08 TVS diode by Vishay General Semiconductor - Diodes Division. This diode offers exceptional clamping voltage and low leakage current, making it ideal for precision circuit protection. TVS diodes like the VBUS05N1-DD1HG3-08 are critical in applications such as power supplies, USB ports, and communication interfaces. They effectively absorb transient energy, preventing damage to connected devices. For example, the VBUS05N1-DD1HG3-08 can shield HDMI ports in consumer electronics from voltage surges. Trust Vishay General Semiconductor - Diodes Division's expertise in delivering high-quality TVS diodes for your protection needs.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: -
- Bidirectional Channels: 1
- Voltage - Reverse Standoff (Typ): 5.5V (Max)
- Voltage - Breakdown (Min): 7V
- Voltage - Clamping (Max) @ Ipp: 21V
- Current - Peak Pulse (10/1000µs): 4A (8/20µs)
- Power - Peak Pulse: 90W
- Power Line Protection: No
- Applications: HDMI, USB
- Capacitance @ Frequency: 0.36pF @ 1MHz
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 0402 (1006 Metric)
- Supplier Device Package: DFN1006-2B
